EV07
Without logo
8526919090
Sell points:
1. It can use in oversea market., support 2G network
2. It is real map tracking and waterproof construction.
3. App available for Android, iPhone, we also have website for PC end real time tracking
4. Built-in 8MB flash memory.
Features:
1. Unique design, combination of style and technology.
2. Supports A-GPS for accelerated positioning.
3. Supports GPS and Cellular tracking.
4. Two way voice communications.
5. Fall detection via 3D G-sensor
6. Firmware upgrade over the air.
7. GPRS blind area data re-upload function.
8. Device can be charged by micro USB
Hardware Specifications:
Content | Specs. |

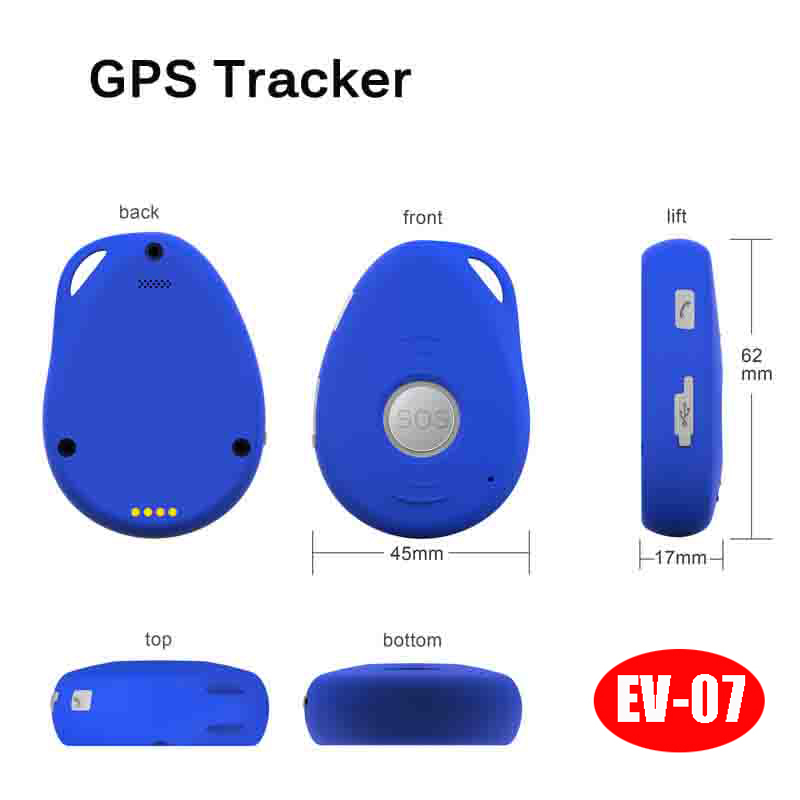

Mainframe Dimension | 61mm*43mm*16mm |
Weight | 35g |
GSM Frequencies | 900/1800mhz/850/1900Mhz |
GPS chip | U-blox 7 (Support AGPS) |
GPS sensitivity | Cold start: -148dBm Hot start: -162dBm |
GPS accuracy | <2.5m |
Time to First Fix | Cold start 32s, Warm start 11s, Hot start 1s |
Charging Voltage | 5V DC |
Battery | Chargeable 3.7V 900mAh |
Standby Current | ≤2mAh |
Storage Temperature | -40°C to +85°C |
Operation Temperature | -20°C to +80°C |
Humidity | 5%-95% non-condensing |
Functions:
Real time tracking by GPS satellite.
Real time tracking by CellLocate, location based on the cellular network, users are able to track in shielded environments such as indoors and enclosed park houses.
AGPS, TTFF in 30 seconds (10 seconds for GPRS included).
Fall detection for children and elderly, patient.
With rechargeable 900mah Lithium battery. Standby time: 30days.
Built-in 3D G-sensor for motion, shock alarm and power management.
Voice monitoring
Two way Voice communication.(high quality sounds and hands free volume sound)
Data logging: 60000locations.
GPRS blind area data re-upload function
Firmware upgrade over the air.
Reply map link of current position.
SOS emergency button.
Geo-fencing alarm, Over speed alarm.
GPS signal lost and recovery alert.
Movement alarm.
Micro USB charger,Micro SIM Card
U-blox GPS technology.
Real time tracking on a map from a computer or on the go with free mobile APP.
Certified with CE, Rohs and SAR Certificates.
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
Please do note hesitate to contact us, if you are interested in the GPS Tracker EV07.
Sell points:
1. It can use in oversea market., support 2G network
2. It is real map tracking and waterproof construction.
3. App available for Android, iPhone, we also have website for PC end real time tracking
4. Built-in 8MB flash memory.
Features:
1. Unique design, combination of style and technology.
2. Supports A-GPS for accelerated positioning.
3. Supports GPS and Cellular tracking.
4. Two way voice communications.
5. Fall detection via 3D G-sensor
6. Firmware upgrade over the air.
7. GPRS blind area data re-upload function.
8. Device can be charged by micro USB
Hardware Specifications:
Content | Specs. |
Mainframe Dimension | 61mm*43mm*16mm |
Weight | 35g |
GSM Frequencies | 900/1800mhz/850/1900Mhz |
GPS chip | U-blox 7 (Support AGPS) |
GPS sensitivity | Cold start: -148dBm Hot start: -162dBm |
GPS accuracy | <2.5m |
Time to First Fix | Cold start 32s, Warm start 11s, Hot start 1s |
Charging Voltage | 5V DC |
Battery | Chargeable 3.7V 900mAh |
Standby Current | ≤2mAh |
Storage Temperature | -40°C to +85°C |
Operation Temperature | -20°C to +80°C |
Humidity | 5%-95% non-condensing |
Functions:
Real time tracking by GPS satellite.
Real time tracking by CellLocate, location based on the cellular network, users are able to track in shielded environments such as indoors and enclosed park houses.
AGPS, TTFF in 30 seconds (10 seconds for GPRS included).
Fall detection for children and elderly, patient.
With rechargeable 900mah Lithium battery. Standby time: 30days.
Built-in 3D G-sensor for motion, shock alarm and power management.
Voice monitoring
Two way Voice communication.(high quality sounds and hands free volume sound)
Data logging: 60000locations.
GPRS blind area data re-upload function
Firmware upgrade over the air.
Reply map link of current position.
SOS emergency button.
Geo-fencing alarm, Over speed alarm.
GPS signal lost and recovery alert.
Movement alarm.
Micro USB charger,Micro SIM Card
U-blox GPS technology.
Real time tracking on a map from a computer or on the go with free mobile APP.
Certified with CE, Rohs and SAR Certificates.
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
Please do note hesitate to contact us, if you are interested in the GPS Tracker EV07.
