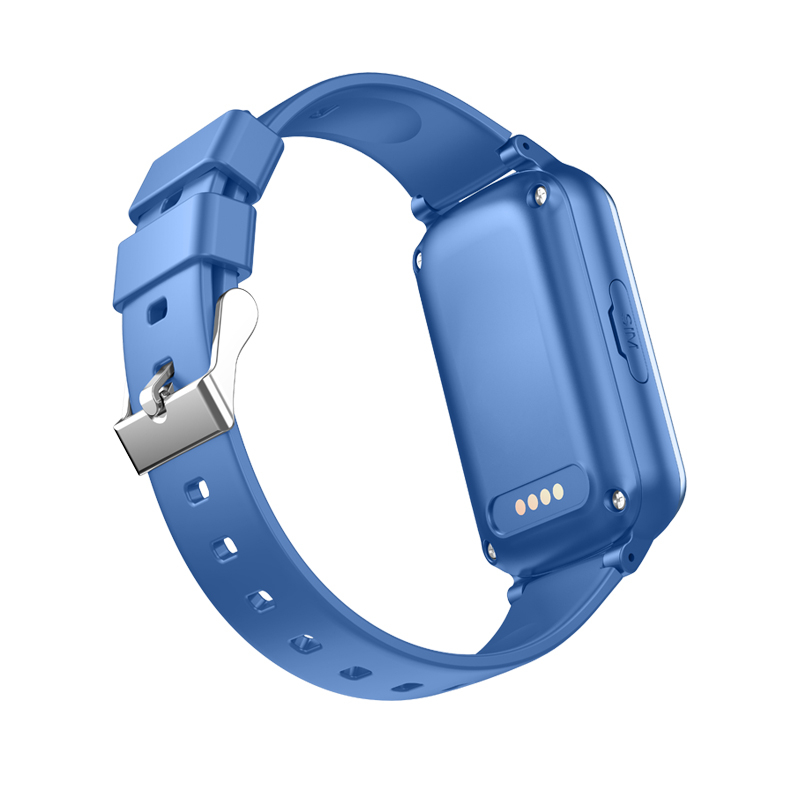

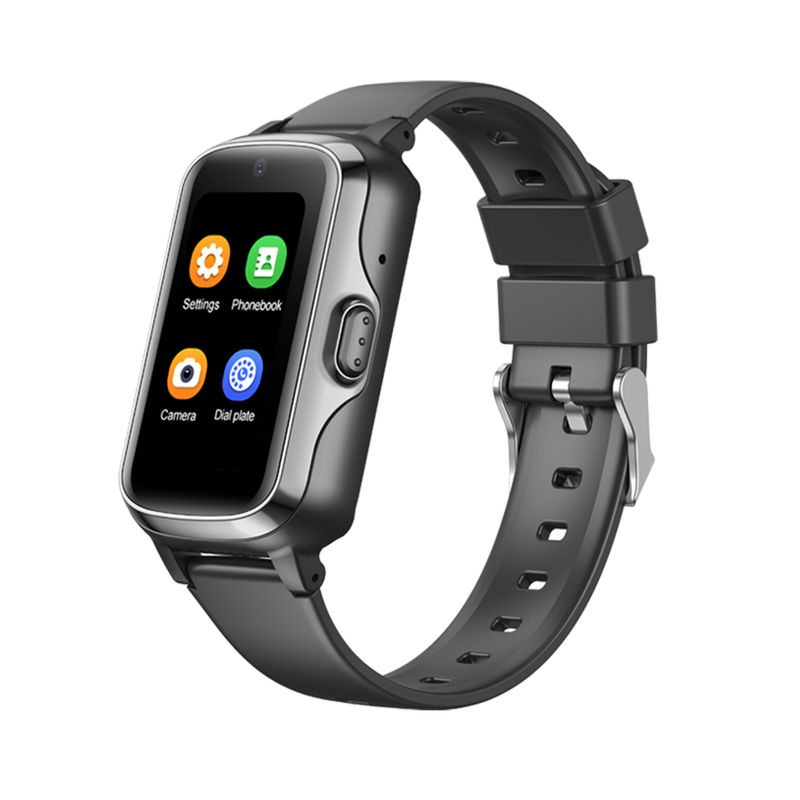

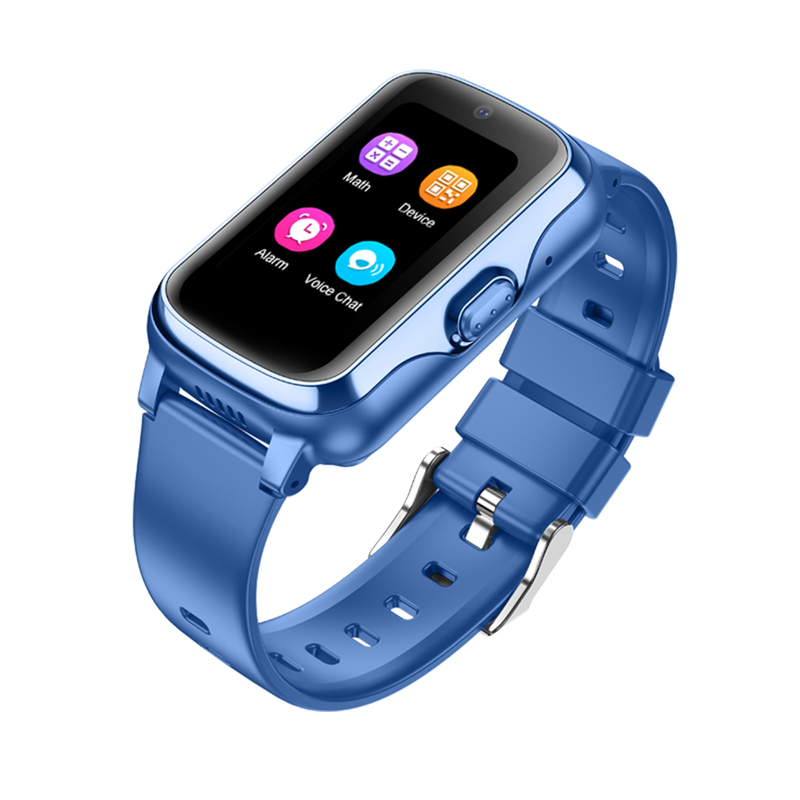

4G IP67 Water resistance Kids Personal GPS Tracker Smart Watch

5 0 Reviews
Working Features
1.Two way voice call/2 way communication
2.Video call
3.SOS panic button
4.Voice remote monitoring /listen in (monitor the sound around the watch)
5.Reject unknown calls
6.Voice chat
7.Phone book/Contacts
8.Take photo/Remote snapshot
9.IP67 waterproof, with motor for vibration mode
10.Remote shutdown & Remote Restart
11.Real time Google Map location
12.Geo-fence/Safety Zone
13.Class mode(No disturb mode in class)
14.Support 4G/3G/2G network
15.Support GPS+Wifi hotspots+LBS positioning
16.Stop Watch/Calculator
17.SMS Alerts
18.Low battery /SOS alerts
19.Time display
20.Switch dial clock
21.Multi languages
22.Volume/brightness adjustable
23.History Route
24.Alarm Clock
25.Pedometer,Calories,Distance & Sleep monitoring
26.With 1 meter length magnet charging cable with avoid short circuit IC
27.Beesure GPS app and AWS cloud server platform lifetime free
Price: $ 28 / pc
Color:
Availability:
  • Y42
  • OEM
  • 8526919090

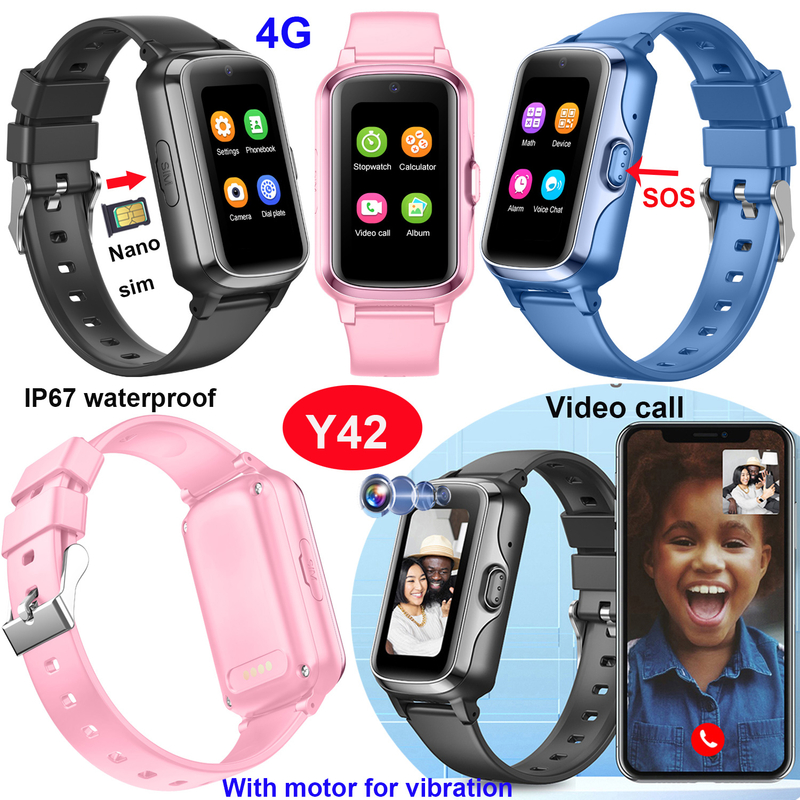

New Launched High Quality 4G IP67 Waterproof Kids Personal GPS Tracker with Panic Button Video Call for SOS Emergency Help Y42

Y42 instruction

***Kindly note this model frequency bands only compatible with Europe,Asia,Africa,Oceania Countries, which is not compatible with North America and South America Countries Frequency bands so far.

Working Features
1.Two way voice call/2 way communication
2.Video call

3.SOS panic button
4.Voice remote monitoring /listen in

5.Reject unknown calls
6.Voice chat
7.Phone book/Contacts
8.Take photo/Remote snapshot
9.IP67 waterproof, with motor for vibration mode
10.Remote shutdown & Remote Restart
11.Real time Google Map location
12.Geo-fence/Safety Zone
13.Class mode(No disturb mode in class)
14.Support 4G/3G/2G network
15.Support GPS+Wifi hotspots+LBS positioning
16.Stop Watch/Calculator
17.SMS Alerts
18.Low battery /SOS alerts
19.Time display
20.Switch dial clock
21.Multi languages
22.Volume/brightness adjustable
23.History Route
24.Alarm Clock
25.Pedometer,Calories,Distance & Sleep monitoring
26.With 1 meter length magnet charging cable with avoid short circuit IC
27.Beesure GPS app and AWS cloud server platform lifetime free

Y42 page1

1. Structure
Structure part Category Product specification Remark
ID style Fashion elegant,waterproof
Overall size 48mm*31.5mm*15mm
Total Weight 55g
Color Black, Pink, Loyal blue
Button Button (power button/SOS button)
Screen 1.47 inch IPS HD touch screen,172*320pixel
Battery 500mAh Class A Rechargeable Polymer Battery
SIM card Nano SIM card
G-sensor Support
Waterproof IP67 waterproof
I/O port  Magnetic charging cable  1 meter length with avoid short circuit IC
2. Hardware
Hardware part Chip ASR3603S
Frequency band  FDD: B1 B2 B3 B5 B7 B8 B20
TDD: B38 B39 B40 B41
WCDMA: B1 B2 B5 B8
GSM: Band B2\B3\B5\8

RAM+ROM 128MB+192MB
Satellite positioning TD1030 (Taidou: GPS + Beidou double star positioning)
Camera 0.3MP pixels
GPS location accuracy Less than 5M
WIFI positioning 802.11b\802.11g\802.11n
LBS location accuracy 100-1000M
Working humidity 5% to 95% non-solidification
Testing and certification CE,RoHs

FDD-GSM antenna Laser carving antenna
Touch screen G+F single touch
MIC Support
Vibrator Support

Y42 page2Y42 page3

3. Software part
Software   part Support   operating system Support  Android 2.3 and above systems, IOS5.0 and above.
Language support Multi languages available

Location GPS+WIFI hotspots+LBS   multi-mode positioning
Call function Two  way talk/SOS calling/ white list/ do not disturb mode
Power management Ultra-low power consumption power management, smart sleep mode
One key SOS  Press SOS key, automatic dial-up number
Smart Geo-fence (Three non overlapped area can be set up)
Historicial route Can check three months' historical route
Wireless upgrade Software remote upgrading, remote debugging maintence , remote setting parameters

Y42 page4Y42 page5Y42 page7

Note:
Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.

If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.
