T405
Without logo
8526919090

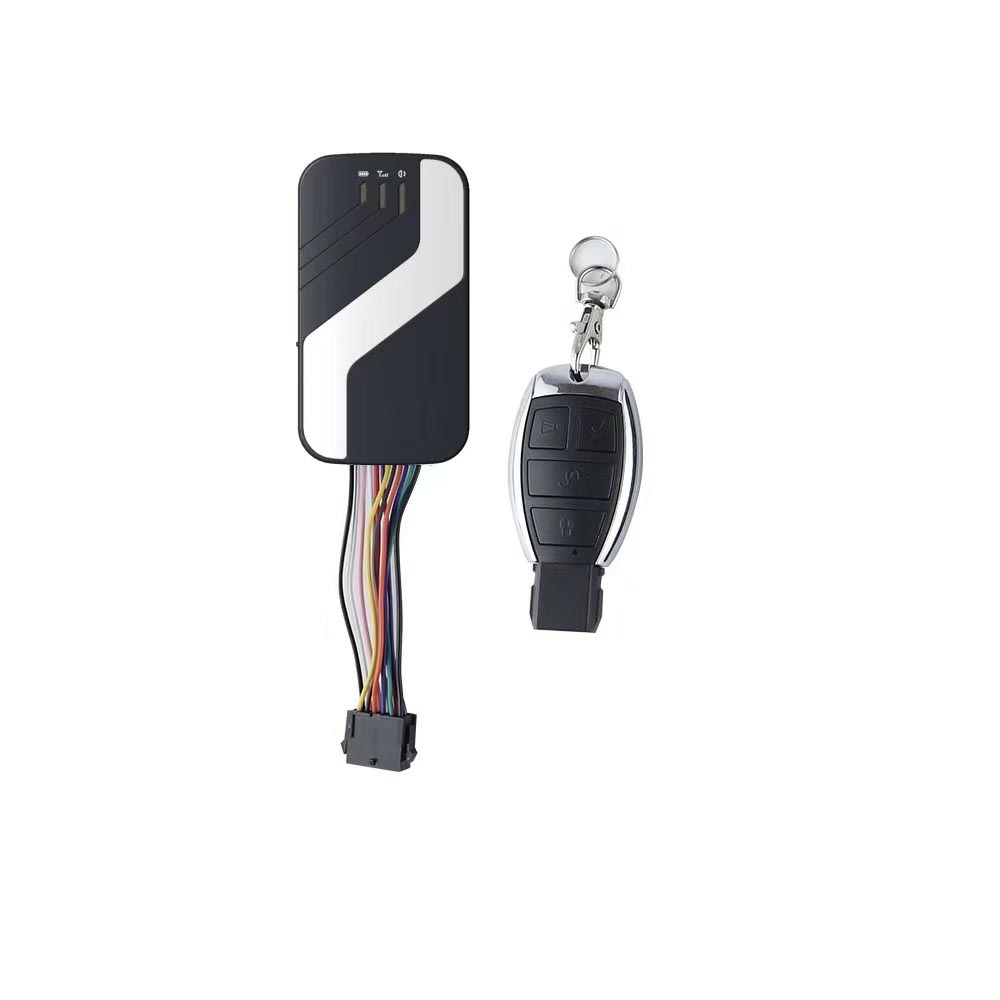

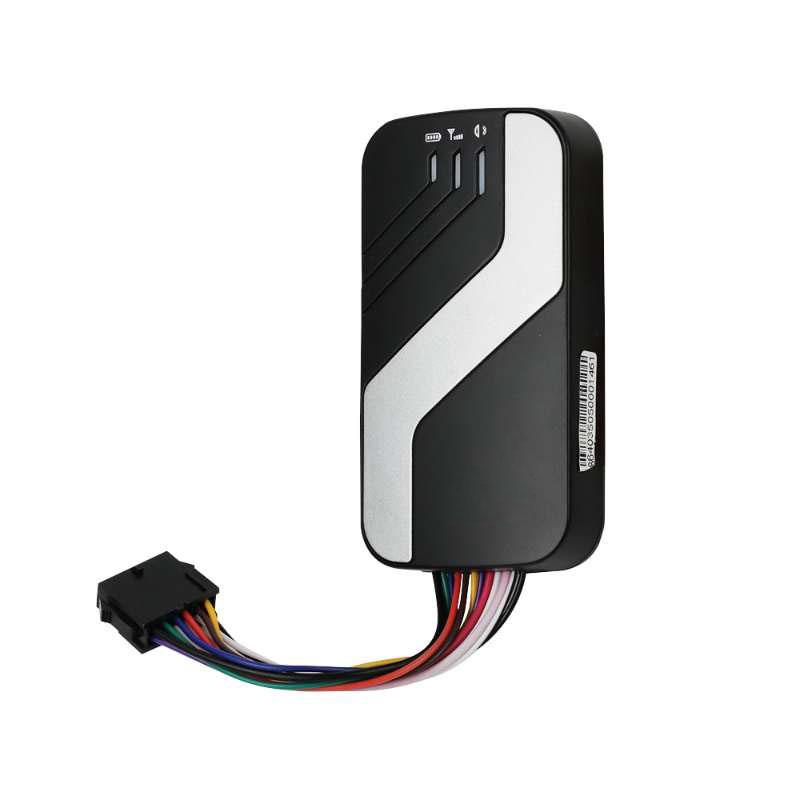

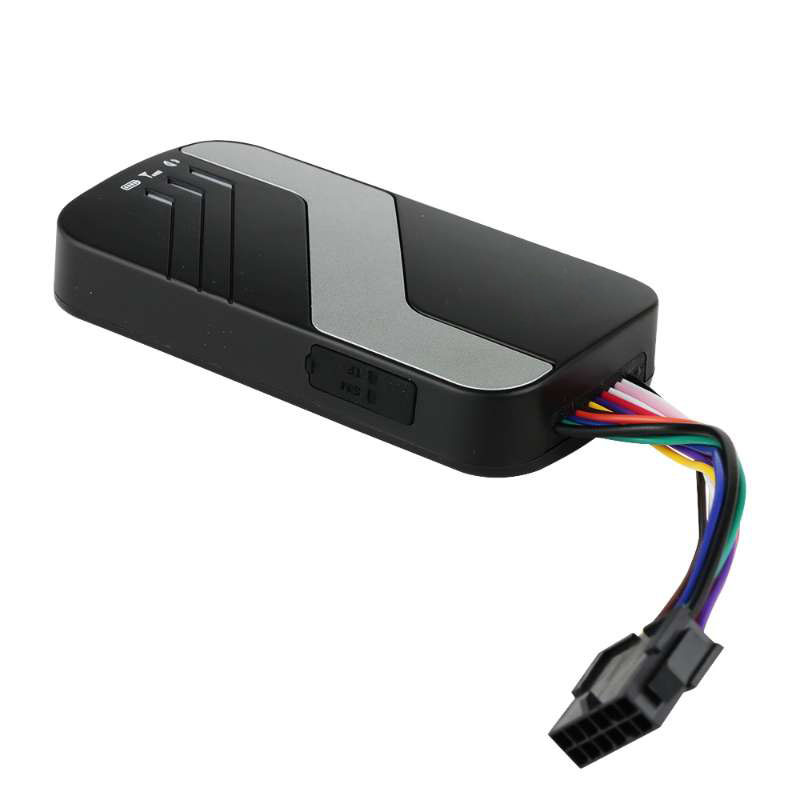

China Manufacture Hot Selling Motorcycle 4G SIM Card Real Time GPS Vehicle Tracker with Fuel Gauge Sensor T405
For car & Motorcycle tracking
1 9.6×5.3×1.8cm , 70g
2 Band :
2G 1900/1800/900/850 MHz
4G B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40"
3 350mAh class A rechargeable polymer battery
4 SOS / Microphone
5 Cut off engine
6 Support fuel sensor
7 Door open /shock /movement /GEO fence alerts
8 Free tracking platform
9 Free mobile app
10 Internal memory 100KB
APP name: BAANOOL IoT
GPS 405 4G LTE : works only with 2g and 4g lte networks, they also changed to update the firmware, now it will work by air avoiding downloading the GPS already installed, also the capacity in its internal memory that will allow us to save routes where the signal loses. that the 3g gps had but it was very variable and sometimes it didn't save
2, Specifications
Content | Specification |
DIM | 9.6×5.3×1.6cm |
Weight | 70g |
Network | GSM/GPRS/LTE |
Band | 4G (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40) 2G (1900/1800/900/850 MHz) |
GPS sensitivity | -159dBm |
GPS accuracy | Less than 5m |
GPS start time | Cold status 45s Warm status 35s Hot status 1s |
Car power supply | 12 V -24V |
Back up battery | 3.7V 350mAh class A rechargeable polymer battery |
Storage Temp | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
3.Features and Functions:
GSM/GPS LED Indicator
Initialization
Change Password
Authorization
Single Locating
Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Alarm Function
Low battery alarm
External Power off alarm
GPS blind Spot alert
SOS
Geo-fence/safety zone
Multi-area management
Movement alarm
Over speed alarm
ACC working alarm
Alarms under Arm State
1 ACC alarm
2.Shock Sensor alarm
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
1 Sleep by time
2 Sleep by shock sensor
3 Deep Sleep by shock sensor
4 No sleep mode
Scheduled wake-up
Check IMEI
Set up Terminal (local) Time
TCP / UDP Switch
Configure parameters by USB
GPRS setting
Less GPRS traffic
Modes Switch between "SMS" and "GPRS"
Set up monitor center number
Cut off the Oil and Power System

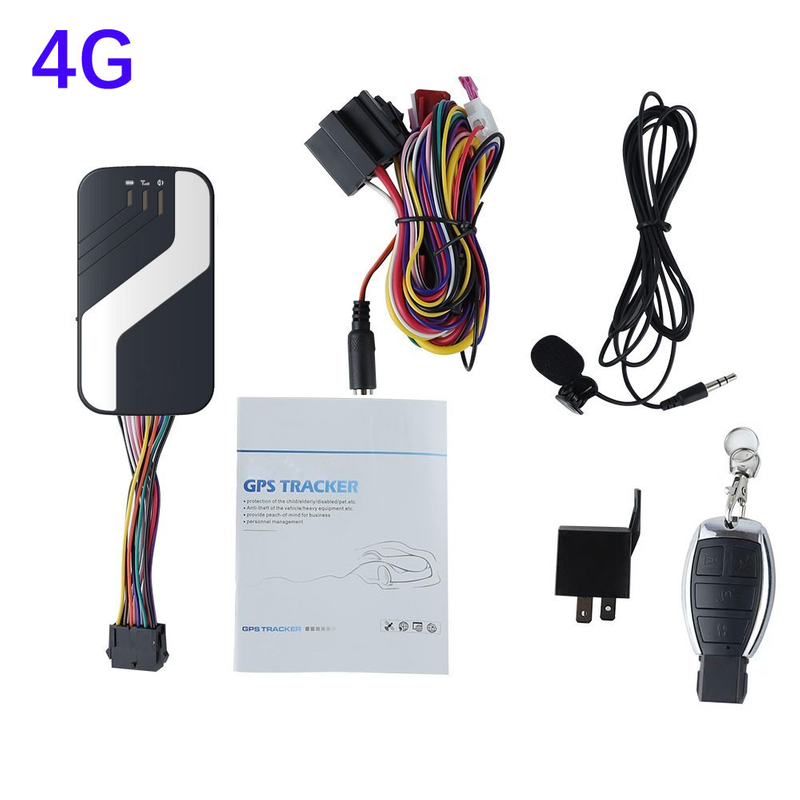

Packaging Detail:
GPS unit
12PIN harness
Microphone
Relay
Manual
Giftbox
Remote controller ( only for model 403B)
Optional
Alarm siren(big or small both ok)
Fuel sensor
Shenzhen Yushengchang Technology Company is a reliable GPS manufacturer, we are specialized in different
collections GPS tracker for kids, girls, lady, women safety, pets security, senior healthcare, vehicle fleet
management monitoring and assets security tracker. For more information, please kindly visit our website
and contact us for test demo: https://www.4p-touch.com
