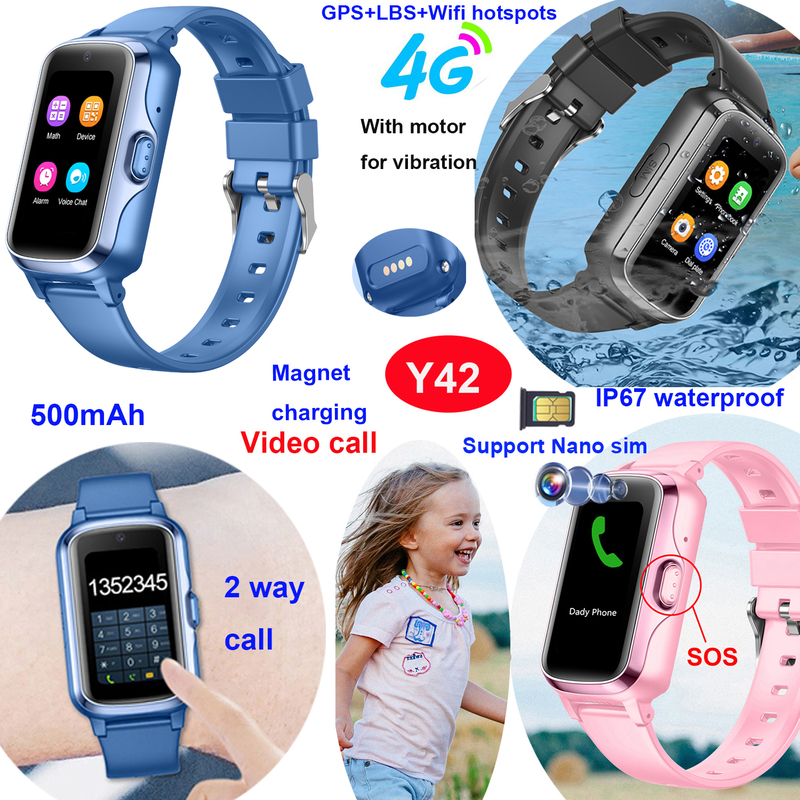

4G IP67 Waterproof Kids Smart Personal GPS Tracker Y42

5 0 Reviews
Working Features:
•Two way voice call/2 way communication
•Video call
•SOS panic button
•Voice remote monitoring /listen in
•Reject unknown calls
•Voice chat
•Phone book/Contacts
•Take photo/Remote snapshot
•IP67 waterproof , with motor for vibration mode
•Remote shutdown & Remote Restart
•Real time Google Map location
•Geo-fence/Safety Zone (Three non overlapped area can be set up)
•Class mode(No disturb mode in class)
•Support 4G/3G/2G network
•Support GPS+Wifi hotspots+LBS positioning
•Stop Watch/Calculator
•SMS Alerts (Low battery /SOS alerts)
•Time display
•Switch dial clock
•Multi languages
•Volume/brightness adjustable
•History Route
•Alarm Clock
•Pedometer,Calories,Distance & Sleep monitoring
•With 1 meter length magnet charging cable with avoid short circuit IC
•Beesure GPS app and AWS cloud server platform lifetime free
Price: $ 26.5 / pc
Color:
Availability:
  • Y42
  • OEM
  • 8526919090

New Launched High Quality 4G IP67 Waterproof Kids Personal GPS Tracker with Panic Button Video Call for SOS Emergency Help Y42

***Kindly note this model frequency bands only compatible with Europe,Asia,Africa,Oceania Countries, which is not compatible with North America and South America Countries Frequency bands so far.

Specification:

Chipset ASR3603S Material PC+ABS+Silicon
Operation   system RT system Positioning GPS+LBS+Wifi hotspots
Battery   capacity class A rechargeable 500mAh
polymer battery
Memory 128MB+192MB
Network support 4G/3G/2G   network Camera 0.3M
Screen 1.47inch IPS screen 172*320 pixel Waterproof IP67 waterproof
Button Power/SOS button Available Colors Blue,Pink,Black
Sim card Nano sim card GPS position   accuracy Less than 5M
Frequency bands
4G FDD: B1 B2 B3 B5 B7 B8 B20
4G TDD: B38 B39 B40 B41
3G WCDMA: B1 B2 B5 B8
2G GSM: B2 B3 B5 B8


Charging cable


1 meter length magnet charging cable
with avoid short circuit IC


Working Features:
•Two way voice call/2 way communication
Video call
•SOS panic button
•Voice remote monitoring /listen in
•Reject unknown calls
•Voice chat
•Phone book/Contacts
•Take photo/Remote snapshot
IP67 waterproof , with motor for vibration mode
•Remote shutdown & Remote Restart
Real time Google Map location
•Geo-fence/Safety Zone (Three non overlapped area can be set up)
•Class mode(No disturb mode in class)
•Support 4G/3G/2G network
•Support GPS+Wifi hotspots+LBS positioning
•Stop Watch/Calculator
•SMS Alerts (Low battery /SOS alerts)
•Time display
•Switch dial clock
•Multi languages
•Volume/brightness adjustable
•History Route
•Alarm Clock
•Pedometer,Calories,Distance & Sleep monitoring
•With 1 meter length magnet charging cable with avoid short circuit IC
Beesure GPS app and AWS cloud server platform lifetime free

Y42 page1

1. Structure
Structure part Category Product specification Remark
ID style Fashion elegant,waterproof
Overall size 48mm*31.5mm*15mm
Total Weight 55g
Color Black, Pink, Loyal blue
Button Button (power button/SOS button)
Screen 1.47 inch IPS HD touch screen,172*320pixel
Battery 500mAh Class A Rechargeable Polymer Battery
SIM card Nano SIM card
G-sensor Support
Waterproof IP67 waterproof
I/O port  Magnetic charging cable  1 meter length with avoid short circuit IC
2. Hardware
Hardware part Chip ASR3603S
Frequency band  FDD: B1 B2 B3 B5 B7 B8 B20
TDD: B38 B39 B40 B41
WCDMA: B1 B2 B5 B8
GSM: Band B2\B3\B5\8

RAM+ROM 128MB+192MB
Satellite positioning TD1030 (Taidou: GPS + Beidou double star positioning)
Camera 0.3MP pixels
GPS location accuracy Less than 5M
WIFI positioning 802.11b\802.11g\802.11n
LBS location accuracy 100-1000M
Working humidity 5% to 95% non-solidification
Testing and certification CE,RoHs

FDD-GSM antenna Laser carving antenna
Touch screen G+F single touch
MIC Support
Vibrator Support

Y42 page2Y42 page3

3. Software part
Software   part Support   operating system Support  Android 2.3 and above systems, IOS5.0 and above.
Language support Multi languages available

Location GPS+WIFI hotspots+LBS   multi-mode positioning
Call function Two  way talk/SOS calling/ white list/ do not disturb mode
Power management Ultra-low power consumption power management, smart sleep mode
One key SOS  Press SOS key, automatic dial-up number
Smart Geo-fence (Three non overlapped area can be set up)
Historicial route Can check three months' historical route
Wireless upgrade Software remote upgrading, remote debugging maintence , remote setting parameters

Y42 page4Y42 page5Y42 page7

Y42 instruction

Note:
Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.

If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.


Shenzhen Yushengchang Technology Company is a reliable GPS manufacturer, we are specialized in different

collections GPS tracker for kids, girls, lady, women safetypets securitysenior healthcarevehicle fleet

management monitoring and assets security tracker. For more information, please kindly visit our website

and contact us for test demo: https://www.4p-touch.com
