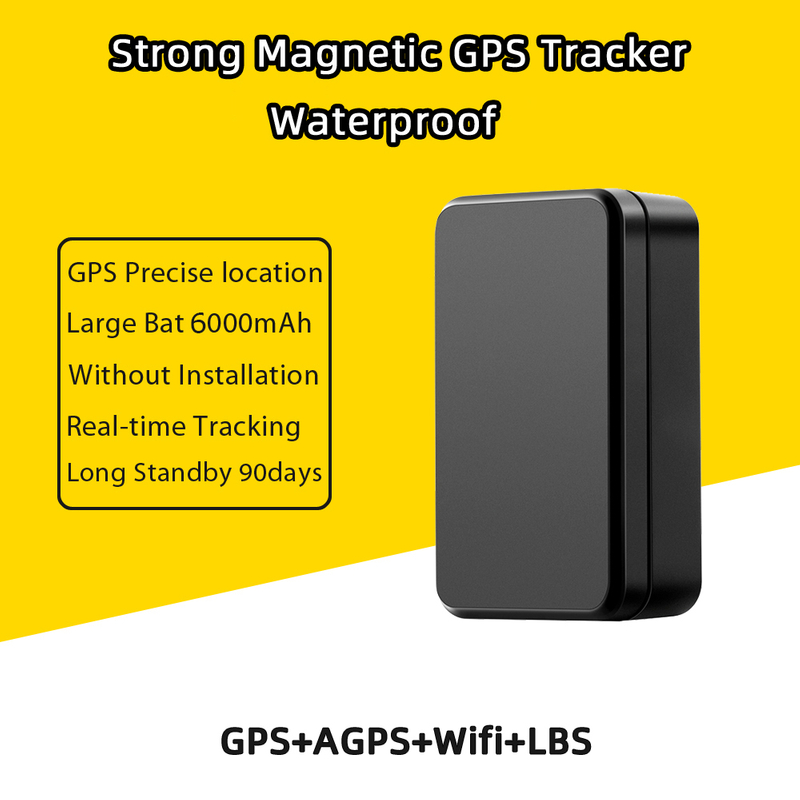

Newest mini magnetic GPS tracker real time anti-lost alarm GPS locator for child/ motorcycle/assets Y12
Specification:
Function | Realtime GPS/LBS/Wifi Positioning,Pedometer, Geo Fence Alarm Reminder, historical track, Power Save |
CPU | 2503D,Assisted Chip: 3333 + 5931 |
ROM | 32MB |
RFPA | 6625E |

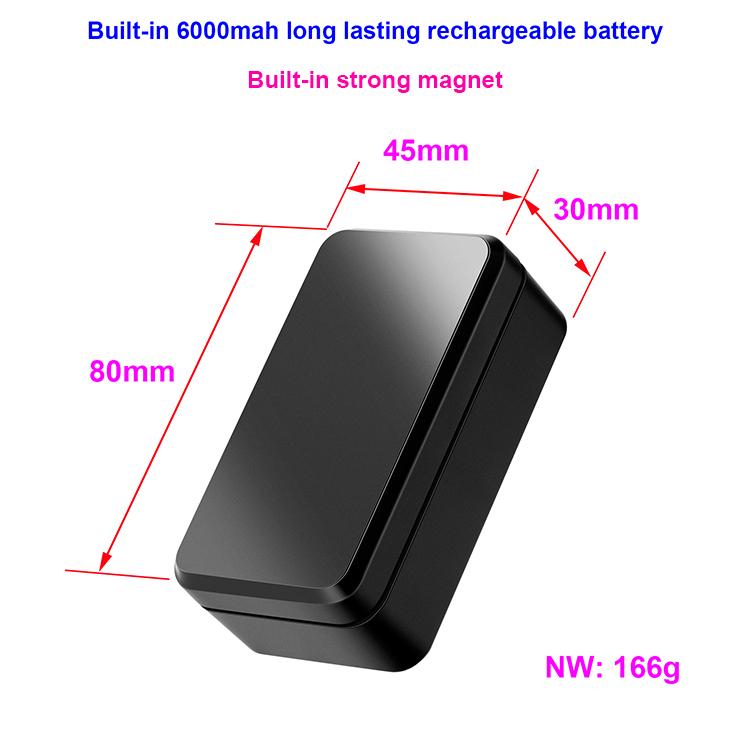

Size | 80*45*30mm |
Working Temperature | -20ºC - +70ºC |
Network | GSM850/900/1800/1900MHz, working with GPRS 12 |
GSM Antenna | PIFA Antenna |
SIM slot | Support NANO sim card |
TF Slot | Support TF card up to 32GB |
GPS Antenna | 15X15 High performance ceramic antenna |
GPS Positioning Accuracy | Less than 5M |
GPS Motion Accuracy | 0.1meter/second |
GPS Positioning Time | Cold Boot-38s(Open field), Warm Boot2s(Open field),The specific time is affected by the environment |
WIFI Positioning Accuracy | 20-50M |
Indoor LBS Positioning Accuracy | 100-500M (Depending on the network) |

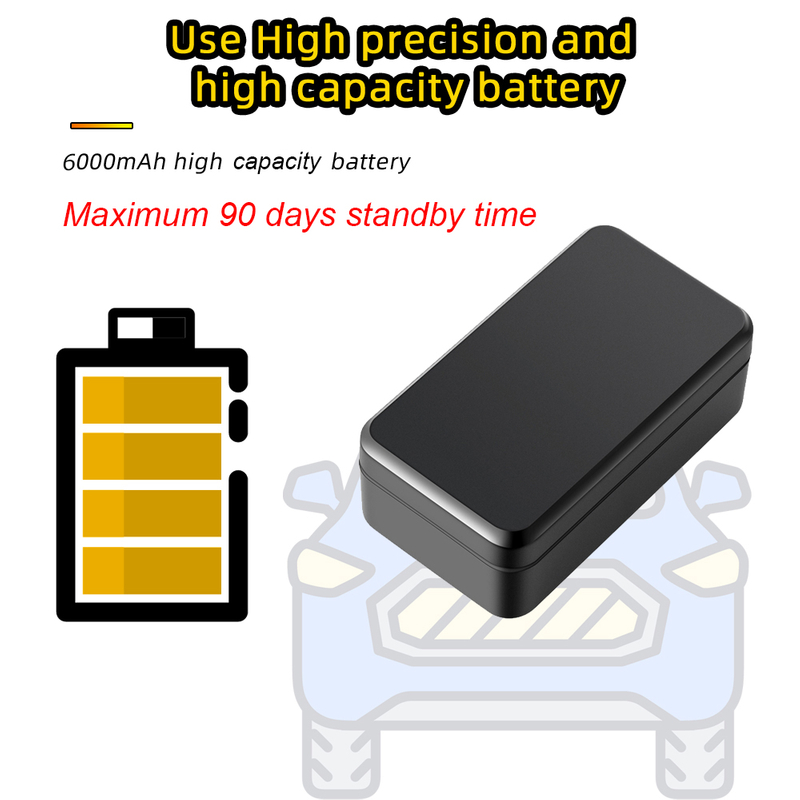

Battery | Rechargeable 5V 3.7V 6000mAh Li-polymer battery |
Charging port | Android Micro-USB port |
Charging Current: | DC 5V/0.5A-1A(depend on your battery capacity) |
MIC | Built-in High-Definition Silicon microphone for SOS |
Sensor | Build-in 3D G-sensor |
Functions:
l Multiple Positioning Mode: GPS+LBS+Wifi hotspots positioning
l Worldwide GSM+GPRS 4-frequency System: 850/900/1800/1900MHz
l Track: The user's specific location can be inquired through the cell phone APP or the computer
l Fence: Designate an area on the map by setting the device as the center point and the alarm will be triggered off immediately once the user of the device goes into or out of this area
l PlayBack: Inquire the moving routes of the device in the past 3 months anytime and anywhere
l SOS: In case of emergency, press the SOS button and the device will send out the call and message for help to the guardian
l Find Device: The lost device can be found through the APP on the cell phone
l Voice: With the highly sensitive microphone, the sound around the device can be heard in real time in case the emergency happens to the user
l Remote Power-off: The device can be turned off through the APP on the guardian's cell phone
l Remote Restart: The device can be restarted through the APP on the guardian's cell phone
l Intelligent Power Saving: The device turns off/on the GPS and data upload in the time range specified through the APP on the guardian's cell phone
Shenzhen Yushengchang Technology Company is a reliable GPS manufacturer, we are specialized in different
collections GPS tracker for kids, girls, lady, women safety, pets security, senior healthcare, vehicle fleet
management monitoring and assets security tracker. For more information, please kindly visit our website
and contact us for test demo: https://www.4p-touch.com
