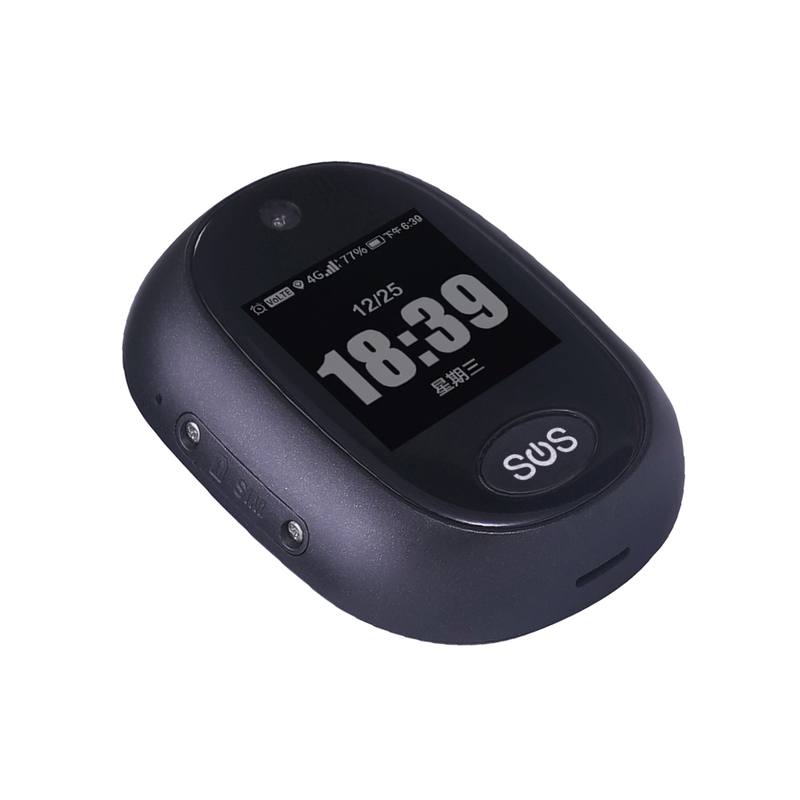

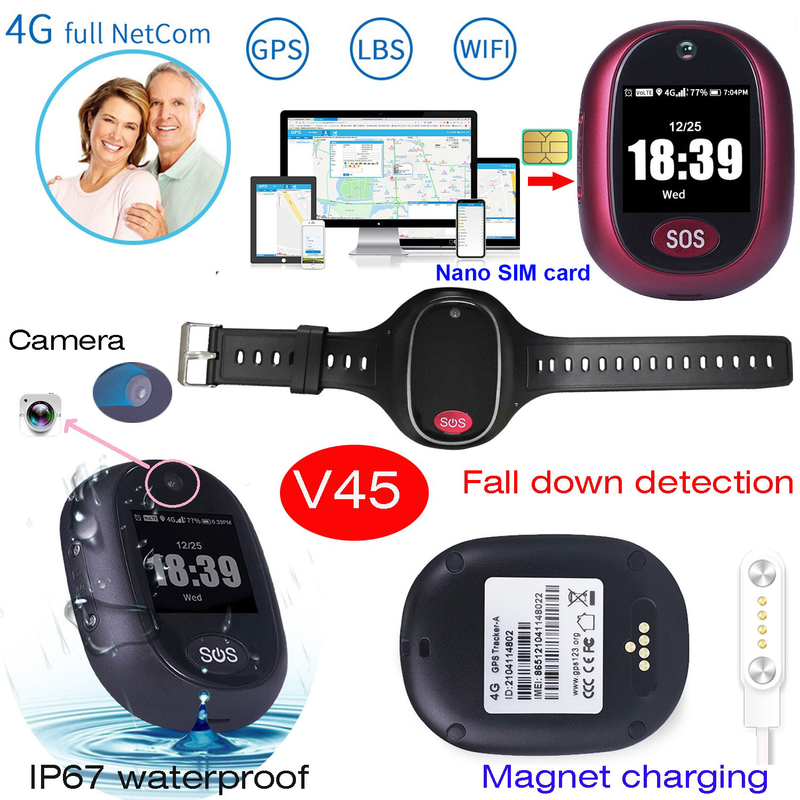

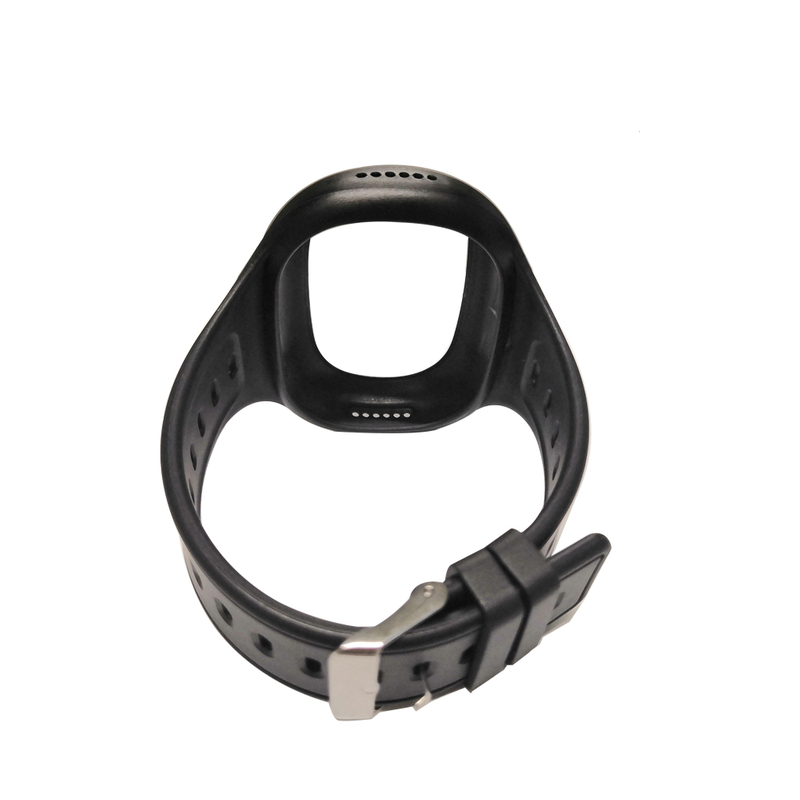

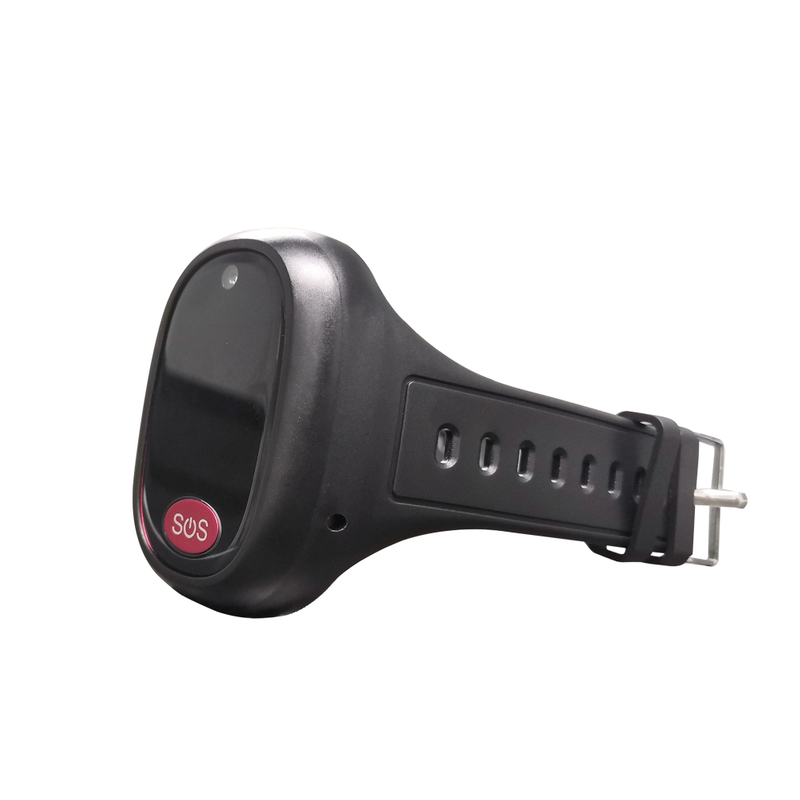

New Developed 4G IP67 Waterproof Personal Senior Mini Gps Tracking Device with Silicon Strap with Remote Snapshot Camera Voice Monitoring Feature V45

5 0 Reviews
Working Features
1.Two way voice call/2 way communication
2.IP67 Waterproof
3.SOS/Power button
4.Voice remote monitoring /listen in
5.Reject unknown calls
6.Real time Google Map location
7.Phone book/Contacts
8.Fall down alert
9.Support 4G/2G network
10.Support GPS+Wifi hotspot+LBS positioning
11.Remote snapshot
12.SMS Alerts
13.Low battery Alert/SOS alerts
14.Medicine notification
15.Remote shutdown & Remote Restart
16.Pedometer,Calories & Sleep monitoring
17.Geo-fence/Safety Zone
18.History Route
19.Alarm Clock
20. Time display
21.Beesure GPS app and AWS cloud server platform lifetime free
22.With 1meter length magnet charging cable with avoid short circuit ic
Price: $ 34.5 / pc
Color:
Please select
Availability:
  • V45
  • Without logo
  • 8526919090

V45 instruction

Working Features
1.Two way voice call/2 way communication
2.IP67 Waterproof
3.SOS/Power button
4.Voice remote monitoring /listen in
5.Reject unknown calls
6.Real time Google Map location
7.Phone book/Contacts
8.Fall down alert
9.Support 4G/2G network
10.Support GPS+Wifi hotspots+LBS positioning
11.Remote snapshot
12.SMS Alerts
13.Low battery Alert/SOS alerts
14.Medicine notification
15.Remote shutdown & Remote Restart
16.Pedometer,Calories & Sleep monitoring
17.Geo-fence/Safety Zone
18.History Route
19.Alarm Clock
20. Time display
21.Beesure GPS app and AWS cloud server platform lifetime free
22.
With 1meter length magnet charging cable with avoid short circuit ic


Description
Squared Up/ Support Customize
check location, adjust location uploading intervals and navigate to the pet.
Check each single day's location in the latest 90 days.
GEO-Fence
Calculate the amount of tracker activity, calorie consumption and exercise journey, steps.
1.Two-way call.
2.Voice monitoring: Request the tracker to call the SOS number for voice monitoring.
To set settings of the GPS tracker.
1.Main monitor number is to get alarm SMS.
2.Find the tracker: The tracker will ring continuously after getting the command for a fast tracker searching.
To display all alerts triggered by the tracker, including SOS call, offline, low battery and fence in and out ones.
Turn on all options to get alert notifications. Please turn on the smart phone's App permission for notifications.

V45 page01V45 page02

Host specifications Details
Operation system RTOS
* Data type of system 32 bit
Chip platform UIS8910FF
* Main frequency 1.2GHz
* Architecture Dual-core ARM CortexTM A7MP processor
* Core Number Dual-core
Support network frequency GSM\WCDMA\FDD-LTE\TDD-LTE
Bands combination(A) 4G-FDD:   Band 1/2/3/5/7/8/20
 4G-TDD:   Band 38/39/40/41
 2G-GSM:  Band 2/3/5/8
Bands combination(B) 4G-FDD:    Band 2/4/5/7/12/28A
 2G-GSM:  Band 2/3/5/8
Camera 2 million pixels
Screen 1.3' LCD HD screen (240*240pdi)

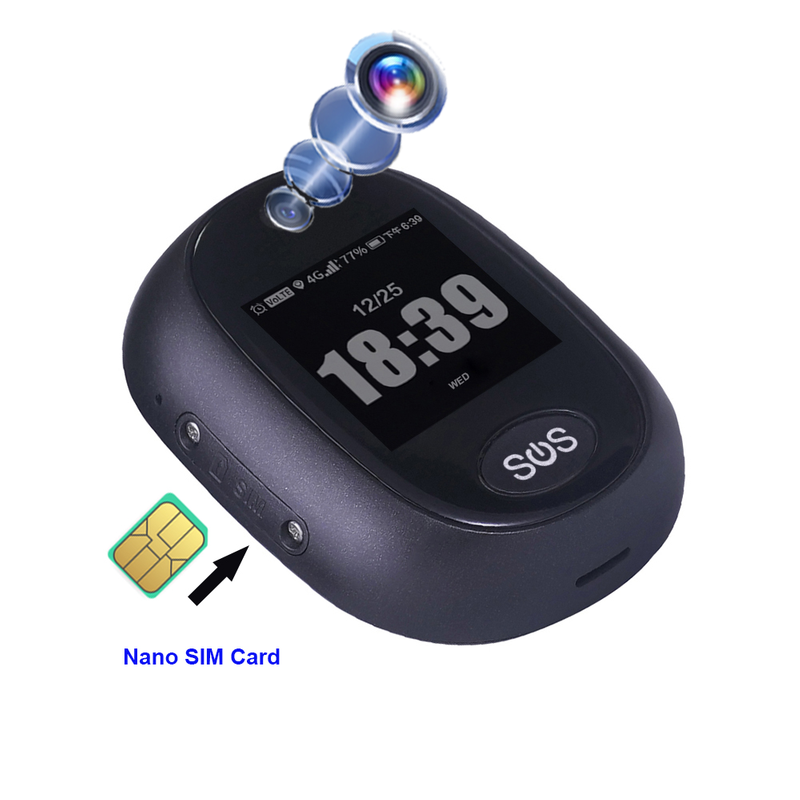

Standby mode Single-card of Nano SIM
 Receive diversity Supports
Data rate 2G Data: EDGE
3G Data: DC-HSPA+\4.2\2.2Mbps
4G Data: CAT1



V45 page03V45 page04

Positioning functions Description
GPS * GPS Supports
Chip module: Main chip internal integrated
GPS signal: L1,1575.42MHz C/A code
GPS channel number: 22 channels
GPS chip scale receiving sensitivity Trace:-165dBm, Capture:-148dBm
GPS accuracy  Less than 5M
GPS Antenna LDS/ceramic
* AGPS Supports
AGPS fast position time: Cold boot within 26 sec to locate
LBS * LBS Sim base tracking Supports
LBS accuracy 200-500M
WIFI  * WiFi Supports
WiFi chip module In built
 WiFi Standard 802.11b\802.11g\802.11n
WiFi accuracy Depends on Google maps and Gaode maps
Other parameters of the mainboard Description
Average standby current To be updated
Average working current To be updated
Working Temps  -10ºC ~ +80ºC
Working Humidity 5% to 95% nonsolidifying
Special features Description
Ultra-low power consumption  Supports
Location check on the Internet By App or web platform in PC and smart phone
Historical route check Supports
Phone calls Supports
SMS text commands Supports
In-built battery Supports
Blind spot supplement upload Supports
Position drift processing Supports
Lithium battery charging circuit Supports
Lithium battery charging protection Supports
Remote voice monitoring Supports
Waterproof level IP67
Auxiliary functions Description
Pill Alarm Supports
Sedentary Remind Supports
Charging boot Supports
Audio Supports with buzzer
Side button\type Power on and off button
Structure and appearance Description

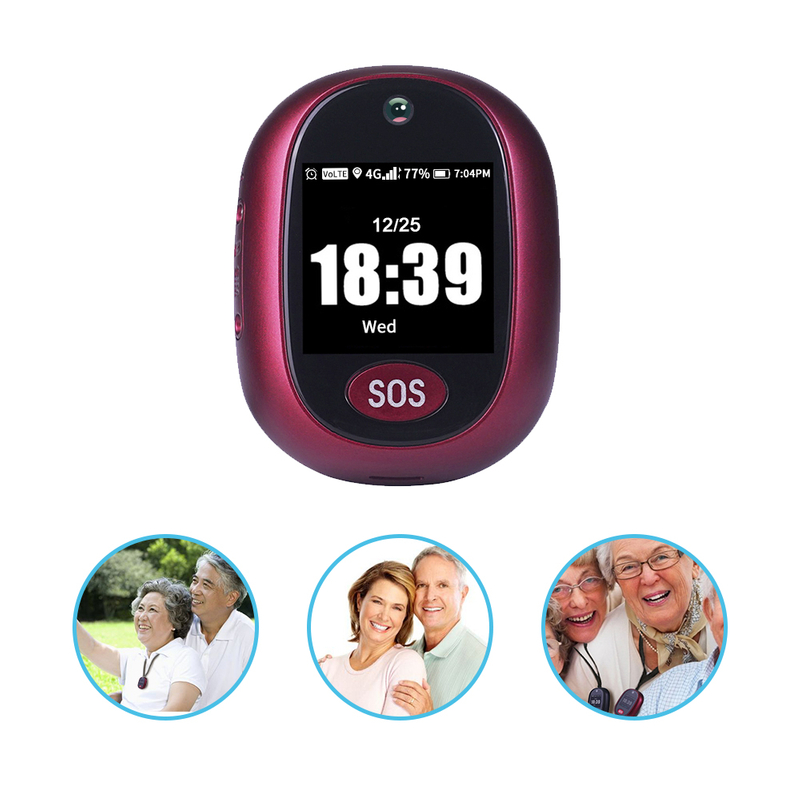

Product modeling Pendant style
physical dimension 59(L)*45.3(W)*16(H)mm
 Weight 41g
Battery capacity 600mAh class A rechargeable polymer battery
Color options Black, Purple

Note:
Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.

If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.
