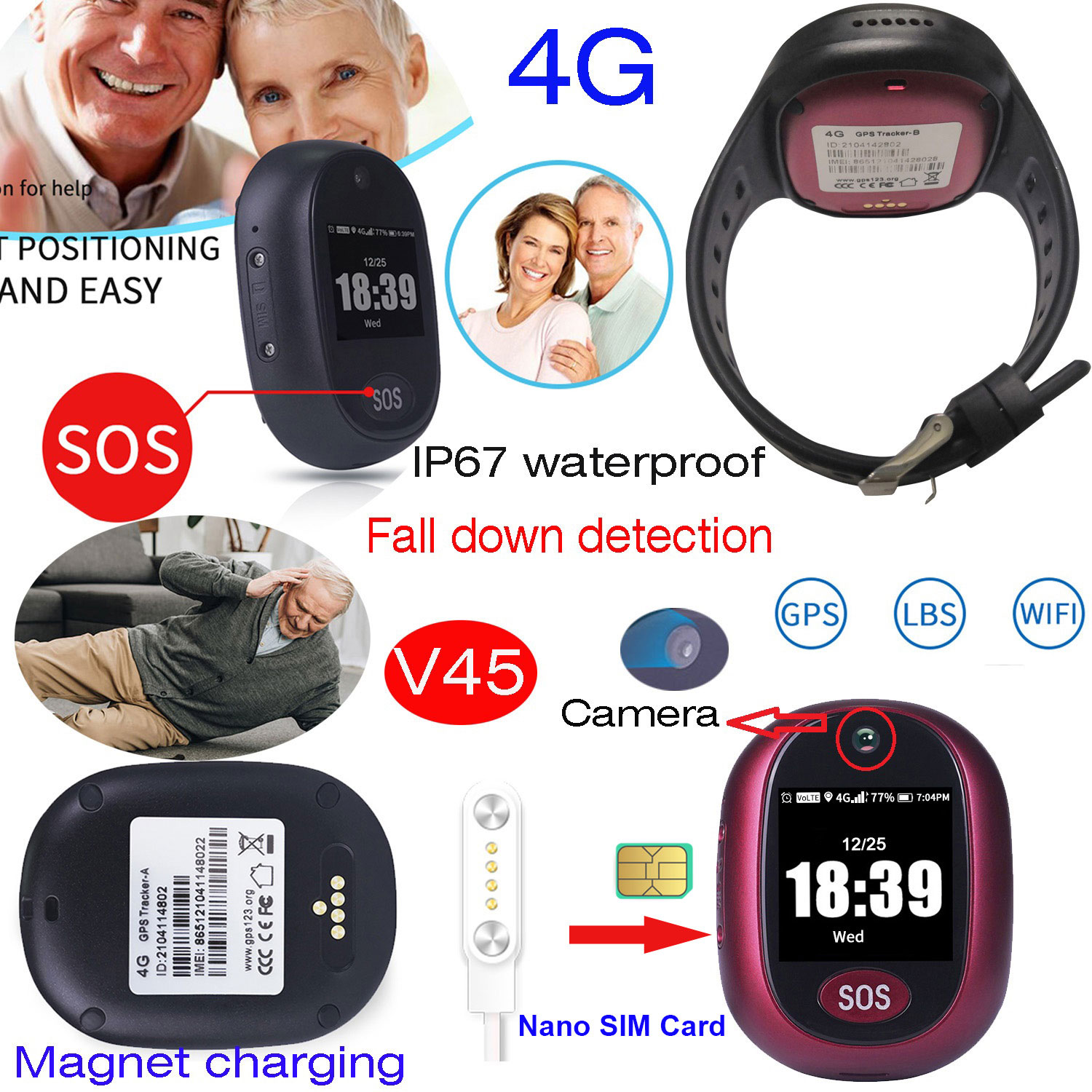

New Arrival IP67 Waterproof 4G personal portable accurate tiny GPS tracker for Elderly with HD Camera Talking Clock V45
Chipset | UIS8910FF | Material | PC+ABS+Silicon |
Operation system | RT system | Positioning | GPS+LBS+Wifi hotspots |
Battery capacity | class A rechargeable 600mAh polymer battery | Memory | 64MB+128MB |
Network | support 4G/2G network | Camera | 2.0M |
Screen | 1.3inch IPS screen | Waterproof | IP67 waterproof |
Screen resolution | 240*240 pixel | Charging cable | 1 meter length magnet charging cable with avoid short circuit IC |
Sim card | Nano sim card | GPS position accuracy | Less than 5M |
Button | Power/SOS button | Available Colors | Black,Purple |
Frequency bands option 1 | For Europe,Asia,Africa,Australia Countries: 4G-FDD: Band 1/2/3/5/7/8/20 4G-TDD: Band 38/39/40/41 2G-GSM: Band 2/3/5/8 | Frequency bands option 2 | For South America, North America Countries: 4G-FDD: Band 2/4/5/7/12/28A 2G-GSM: Band 2/3/5/8 |
Working Features:
•Two way voice call/2 way communication
•IP67 Waterproof
•SOS/Power button
•Voice remote monitoring /listen in
•Reject unknown calls
•Real time Google Map location
•Phone book/Contacts
•Fall down alert
•Support 4G/2G network
•Support GPS+Wifi hotspot +LBS positioning
•Remote snapshot
•SMS Alerts (Fall down alert/Low battery Alert/SOS alerts)
•Medicine notification
•Remote shutdown & Remote Restart
•Pedometer,Calories & Sleep monitoring
•Geo-fence/Safety Zone(Three non overlapped area can be set up)
•History Route
•Alarm Clock
•Time display
•Beesure GPS app and AWS cloud server platform lifetime free
•With 1meter length magnet charging cable with avoid short circuit ic
Description |
Squared Up/ Support Customize |
check location, adjust location uploading intervals and navigate to the pet. |
Check each single day's location in the latest 90 days. |
GEO-fence |
Calculate the amount of tracker activity, calorie consumption and exercise journey, steps. |
1.Two-way call. 2.Voice monitoring: Request the tracker to call the SOS number for voice monitoring. |
To set settings of the GPS tracker. 1.Main monitor number is to get alarm SMS. 2.Find the tracker: The tracker will ring continuously after getting the command for a fast tracker searching. |
To display all alerts triggered by the tracker, including SOS call, offline, low battery and fence in and out ones. |
Turn on all options to get alert notifications. Please turn on the smart phone's App permission for notifications. |
Positioning functions | Description | |
GPS | * GPS | Supports |
Chip module: | Main chip internal integrated | |
GPS signal: | L1,1575.42MHz C/A code | |
GPS channel number: | 22 channels | |
GPS chip scale receiving sensitivity | Trace:-165dBm, Capture:-148dBm | |
GPS accuracy | Less than 5M | |
GPS Antenna | LDS/ceramic | |
* AGPS | Supports | |
AGPS fast position time: | Cold boot within 26 sec to locate | |
LBS | * LBS Sim base tracking | Supports |
LBS accuracy | 200-500M | |
WIFI | * WiFi | Supports |
WiFi chip module | In built | |
WiFi Standard | 802.11b\802.11g\802.11n | |
WiFi accuracy | Depends on Google maps and Gaode maps | |
Other parameters of the mainboard | Description | |
Average standby current | To be updated | |
Average working current | To be updated | |
Working Temps | -10ºC ~ +80ºC | |
Working Humidity | 5% to 95% nonsolidifying | |
Special features | Description | |
Ultra-low power consumption | Supports | |
Location check on the Internet | By App or web platform in PC and smart phone | |
Historical route check | Supports | |
Phone calls | Supports | |
SMS text commands | Supports | |
In-built battery | Supports | |
Blind spot supplement upload | Supports | |
Position drift processing | Supports | |
Lithium battery charging circuit | Supports | |
Lithium battery charging protection | Supports | |
Remote voice monitoring | Supports | |
Waterproof level | IP67 | |
Auxiliary functions | Description | |
Pill Alarm | Supports | |
Sedentary Remind | Supports | |
Charging boot | Supports | |
Audio | Supports with buzzer | |
Side button\type | Power on and off button | |
Structure and appearance | Description | |
Product modeling | Pendant style | |
physical dimension | 59(L)*45.3(W)*16(H)mm | |
Weight | 41g | |
Battery capacity | 600mAh class A rechargeable polymer battery | |
Color options | Black, red |
Note:
Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.
If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.
Shenzhen Yushengchang Technology Company is a reliable GPS manufacturer, we are specialized in different
collections GPS tracker for kids, girls, lady, women safety, pets security, senior healthcare, vehicle fleet
management monitoring and assets security tracker. For more information, please kindly visit our website
and contact us for test demo: https://www.4p-touch.com
