A9
Without logo
8526919090
High Quality Personal Locator 2G GSM Tracker Tracking GPS with Multiple Accurate Position for Avoiding Abducting A9
Working Features:
•Two way voice call/2 way communication
•Support GPS+Wifi hotspots+LBS positioning
•SOS/Power button
•Reject unknown calls
•Real time Google Map location
•Phone book/Contacts
•Geo-fence/Safety Zone(Three non overlapped area can be setup)
•Voice remote monitoring /listen in
•History Route
•Alarm Clock
•Pedometer & Sleep monitoring
•Support 2G GSM network
•SMS Alerts
•Low battery alert/SOS alerts
•Remote shutdown
•Beesure GPS app and AWS cloud server platform lifetime free
Note: our 2G/GSM GPS tracker is ok with 3G SIM card ,just check with phone operator ,
the 3G SIM card is compatible with 2G GSM network is fine. Because even 2G is quit from market, but the 3G network still use the 2G base station, so the voice +data feature still valid as is.
| 1. Structure division | ||
| structure parts | Category | Specification |
| ID design | delicacy and smart | |
| Whole machine size | 38X38X12mm | |
| color | Green | |
| button | one button(power/SOS button) | |
| weight | 22g without package, 130g with package box | |
| GPS antenna | High sensitive ceramics active antenna | |
| GSM antenna | FPC antenna | |
| Battery | 500mAh class A rechargeable polymer battery | |
| SIM card slot | 1pc | |
| G-sensor | Support | |
| I/O port | USB charge | |
| Hardware parts | CPU | MTK2503 |
| CPU chip | MTK3337 | |
| GPRS | Class12 | |
| GPS signal | L1,1575.42MHz C/A | |
| GPS channel number | 22 channels | |
| GPS chip receive | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm | |
| GPS location accuracy | 5~15M | |
| LBS location accuracy | 100-1000M | |
| Minimum standby current | less than 0.5 mA | |
| Average standby current | less than 2.5 mA | |
| Average working current | around 55mA | |
| Working temperature | -20~70ºC | |
| Working humidity | 5% to 95% non-congealable | |
| Test and certification | can approval by 3C,CE&ROSH | |
| GPS antenna | Built-in high sensitivity FPC antenna | |
| GSM antenna | Built-in four frequency method of antenna | |
| bluetooth | NA | |
| G-sensor | Support | |
| MIC | Support |
| software parts | supported operating | Support android 2.3 and above system, IOS5.0 and above. |
| call function | double talk/The remote monitoring | |
| Language support | Simplified Chinese and English | |
| Compatible with support for multi-languages | ||

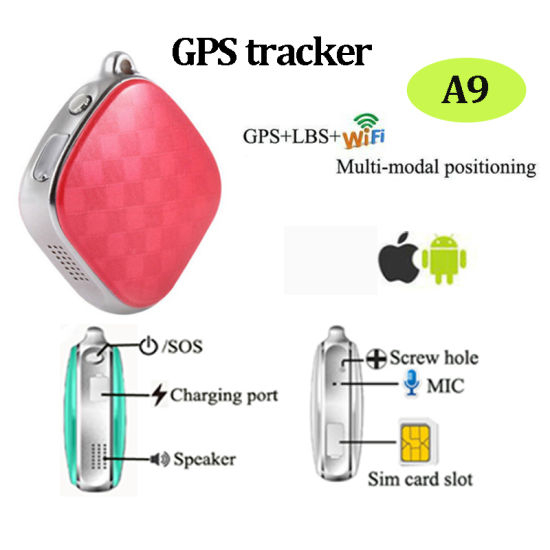

| GSM+GPRS+GPS | GPS+LBS+WIFI Multi-modal positioning | |
| support AGPS | Cold start 26 seconds positioning | |
| call function | SOS call, voice monitor, whitelist for don't disturb | |
| power management | Ultra-low power consumption of power management,intelligent dormancy | |
| One key emergency | SOS one key emergency function ,autodialing | |
| Smart Geo-fence | Outside the range setting can be automatic alarm | |

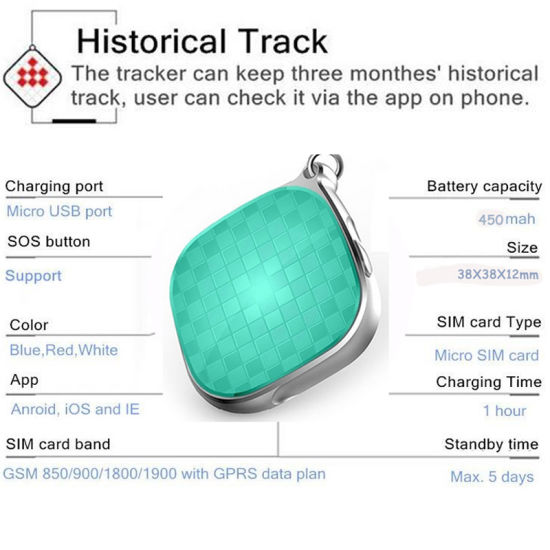

| historical route | Can check history of three months | |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters |
Note:
Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.
If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.
Shenzhen Yushengchang Technology Company is a reliable GPS manufacturer, we are specialized in different
collections GPS tracker for kids, girls, lady, women safety, pets security, senior healthcare, vehicle fleet
management monitoring and assets security tracker. For more information, please kindly visit our website
and contact us for test demo:
https://www.4p-touch.com
