A RT OS-Based GPS Health Monitoring Watch for Elderly Care: Wi-Fi Innovation with Simplified Design,Easy Operation D41WIFI

A RT OS-Based GPS Health Monitoring Watch for Elderly Care: Wi-Fi Innovation with Simplified Design,Easy Operation D41WIFI

A simplified RTOS-based smartwatch designed for elderly care, featuring dual-mode Wi-Fi connectivity that supports both manual connection by users and remote configuration by caregivers via app or server interfaces. The device incorporates a Block UI tailored for seniors and excludes a camera to reduce complexity and cost. Suitable for homecare, nursing care, and hospital settings, the watch prioritizes essential health monitoring, real-time location tracking, and ease of use.

1. Introduction

With the rapid growth of the global aging population, there is an increasing need for intelligent healthcare solutions. GPS health monitoring watches have become essential tools for elderly care, providing real-time location tracking and emergency response. However, reliance on cellular networks alone presents challenges such as coverage gaps, data costs, and battery drain.

A simplified RTOS-based smartwatch that integrates Wi-Fi connectivity to address these limitations. The key innovation is dual-mode Wi-Fi connection—enabling both manual user control and remote caregiver management. The device excludes a camera to reduce cost, complexity, and privacy concerns, making it more accessible and acceptable for elderly users.

2. Technical Architecture

2.1 RTOS Foundation

The device runs on RTOS provides:

• Real-time responsiveness: Critical alerts and health data are processed with minimal delay

• Power efficiency: With a 800mAh battery, the watch delivers 3–4 days of normal use

• Task prioritization: SOS alerts and fall detection receive highest priority

2.2 Wi-Fi Module Integration

The watch includes a 2.4G 802.11b/g/n Wi-Fi module alongside 4G/3G/2G cellular connectivity. Benefits include:

• Improved indoor location: Wi-Fi supplements GPS in buildings where signals are weak

• Reduced costs: Routine data transmission uses Wi-Fi instead of cellular

• Connectivity redundancy: Wi-Fi serves as a backup when cellular coverage is poor

2.3 Dual-Mode Wi-Fi Connectivity

Manual Mode (User-Operated)

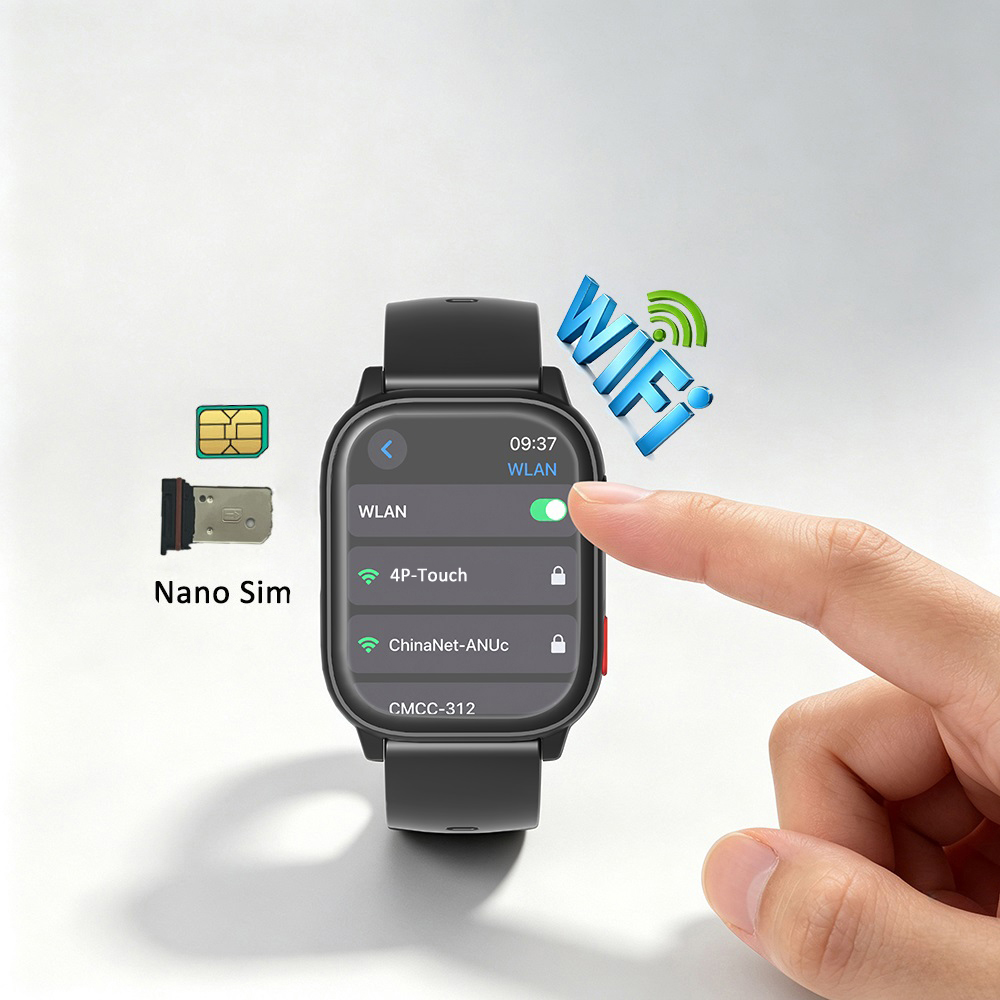

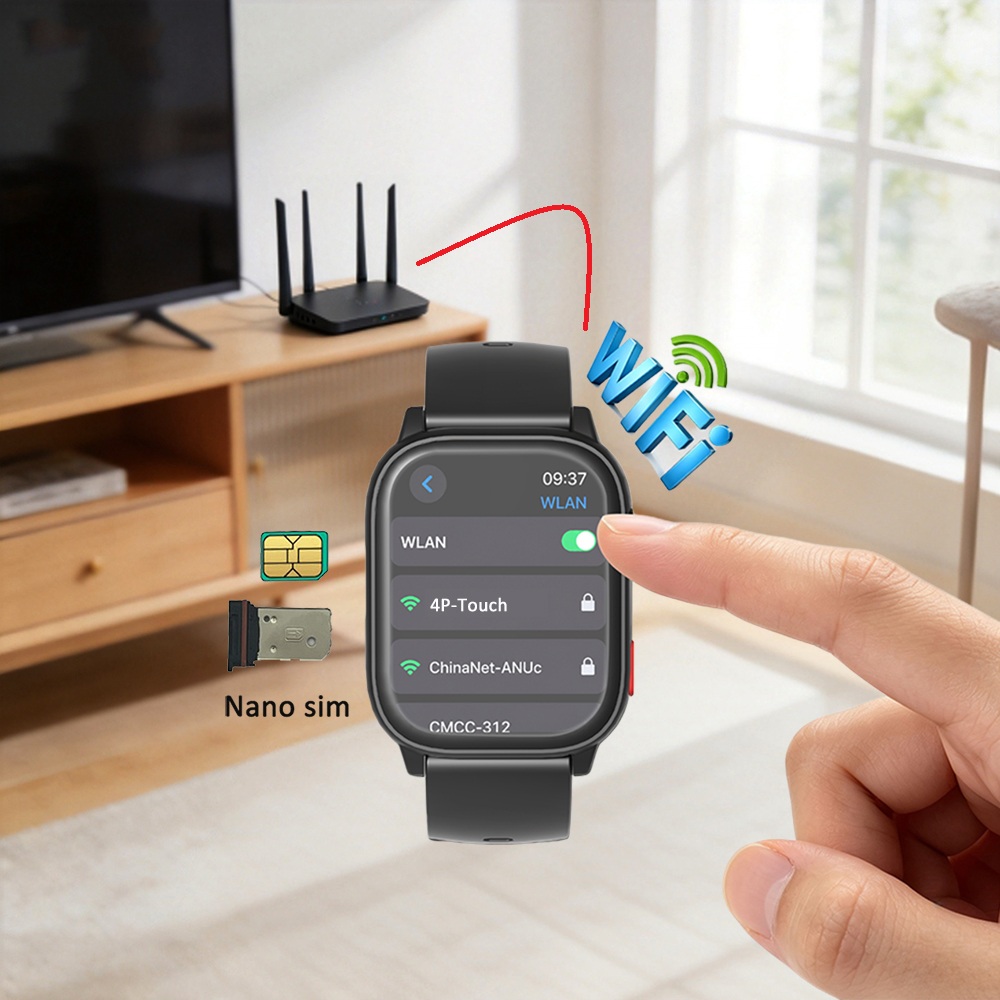

The Block UI allows seniors to scan and connect to Wi-Fi networks independently using large, simple buttons.

Remote Mode (Caregiver-Operated)
Through a mobile app or web dashboard, caregivers can remotely manage Wi-Fi connections—essential when a senior moves to a new facility, network credentials change, or the user cannot manage the process themselves.

3. User Interface: Block UI

The Block UI design prioritizes accessibility:

• High contrast for users with vision decline

• Large buttons and pictographic icons for easy navigation

• Tactile feedback via physical buttons complementing the touchscreen

The Wi-Fi connection interface follows the same principles with oversized keys and clear visual connection status indicators.

4. Applications in Elderly Care

4.1 Homecare

Seniors maintain connectivity at home without high data costs. Family members can remotely manage network connections. Key functions include real-time health monitoring (heart rate, SpO₂, temperature), fall detection, geofencing, and two-way calling.

4.2 Nursing Care

Wi-Fi enables indoor positioning in facilities where GPS is unreliable. Administrators can pre-configure network settings for multiple devices, streamlining deployment.

4.3 Hospital Care

The RTOS ensures reliable monitoring and alerting. Encrypted Wi-Fi protects sensitive health data. The watch supports continuity of care from hospital to home.

5. Cloud and Server Integration

Health data is transmitted to AWS cloud servers for storage , we open protocol , the device all data ok to report to your server properly. The remote management platform allows caregivers to:

• View real-time location on interactive maps

• Monitor vital sign trends

• Manage alerts (SOS, fall detection, low battery, medicine reminder)

• Control Wi-Fi connections remotely

The RTOS-based GPS health monitoring watch with dual-mode Wi-Fi connectivity offers a practical, cost-effective solution for elderly care. By excluding a camera, the device reduces cost and complexity while addressing privacy concerns. The combination of manual and remote Wi-Fi management ensures continuous connectivity regardless of the user's technical ability. With applications across homecare, nursing care, and hospital care for elderly, this simplified design effectively meets the essential needs of elderly monitoring while remaining accessible to its users.
