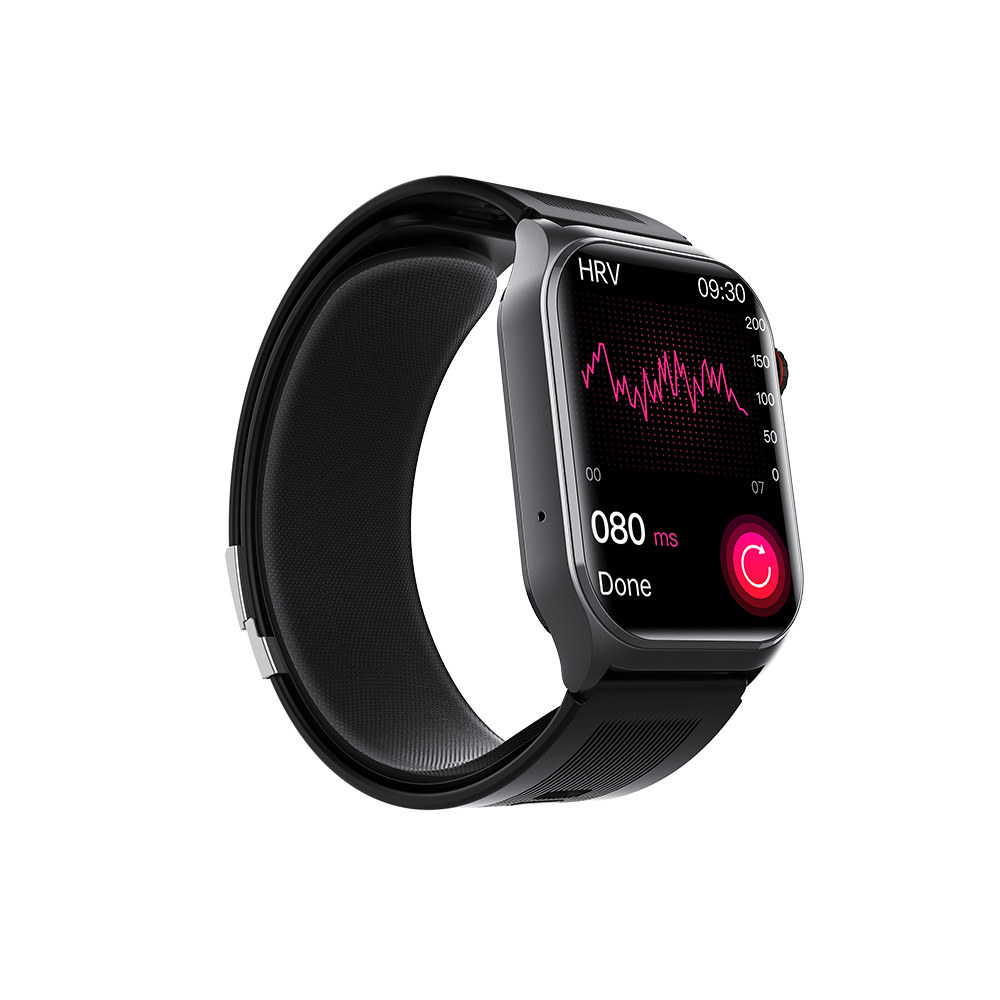

Air Pump Health Watch with Heart Rate ECG

5 0 Reviews

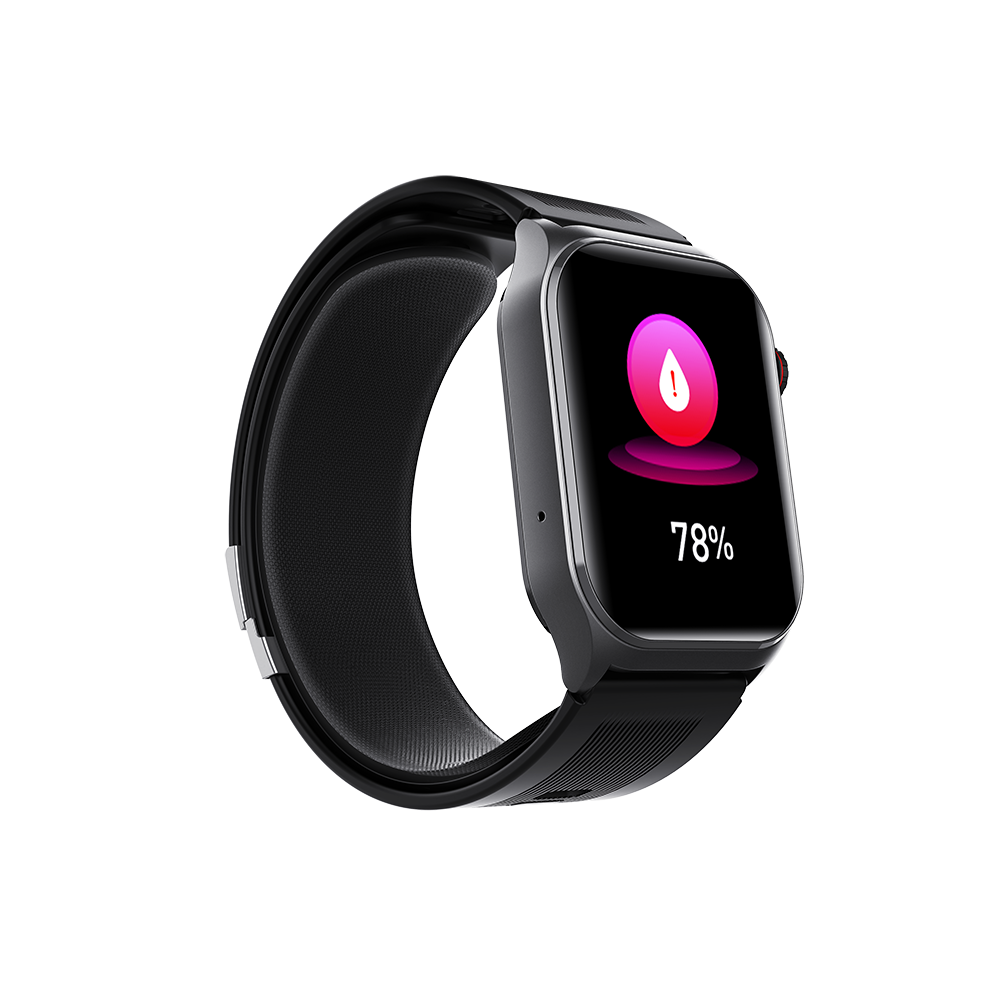

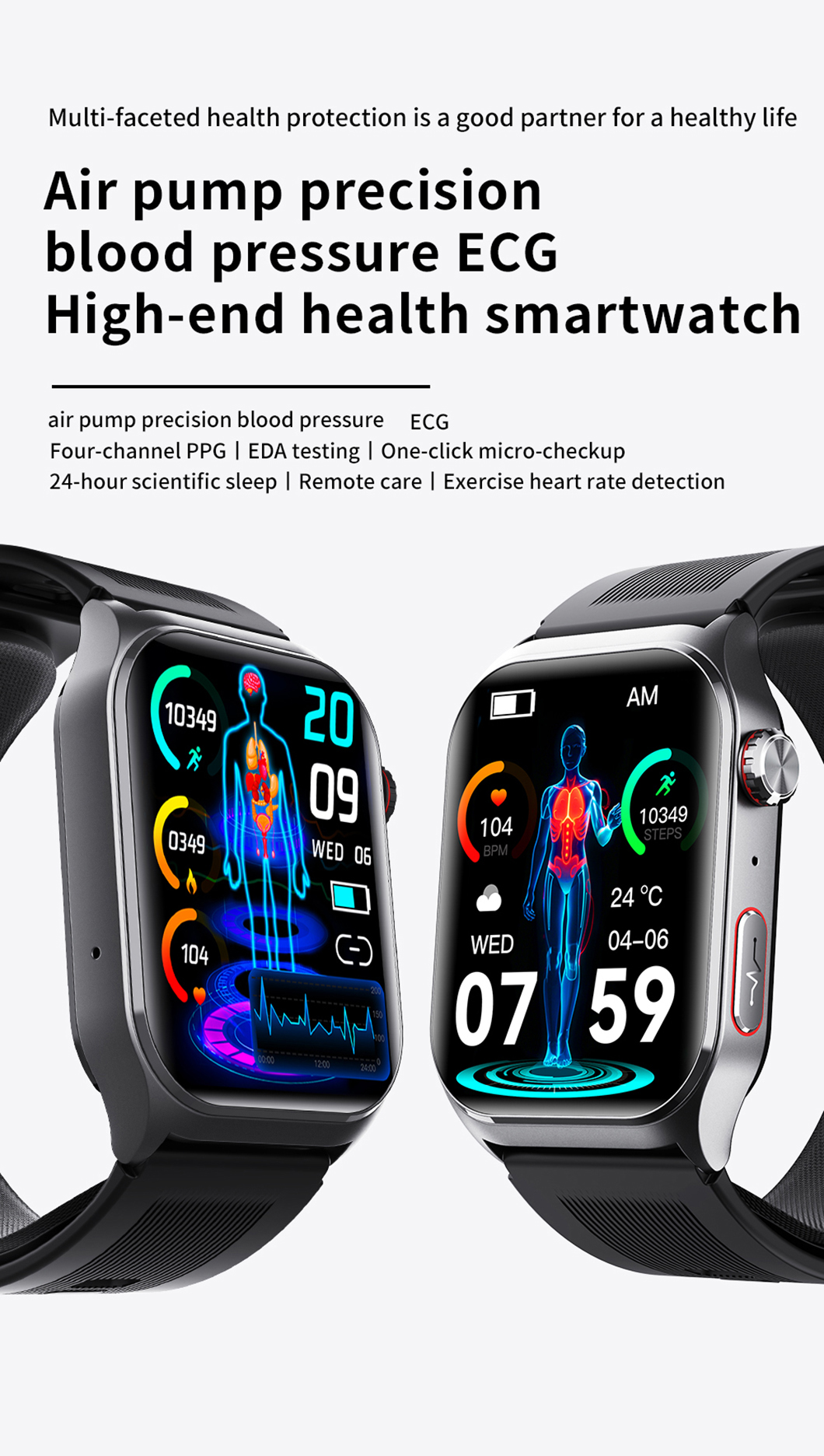

The F52 Smart Watch is a state-of-the-art wellness wearable engineered with an integrated micro air pump mechanism for precise, hardware-driven blood pressure tracking. Built with a vivid 2.10-inch IPS high-color-gamut square display, the F52 merges modern aesthetics with extensive physical and mental health monitoring. Powered by the JL7013A7 main processing unit and a high-accuracy TI4950 sensor module, it provides non-stop heart rate surveillance, ECG readings, body composition breakdowns, stress evaluations, and automatic fall detection. Built for daily health awareness and active lifestyle tracking, the F52 delivers up to 12 days of battery stamina, clear Bluetooth 5.3 voice calls, and coverage for more than 136 exercise activities.
Price: $ 84.5 / unit
color:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • F52

  • OEM

  • 9102190000

Air Pump Health Watch with Heart Rate ECG F52


Video

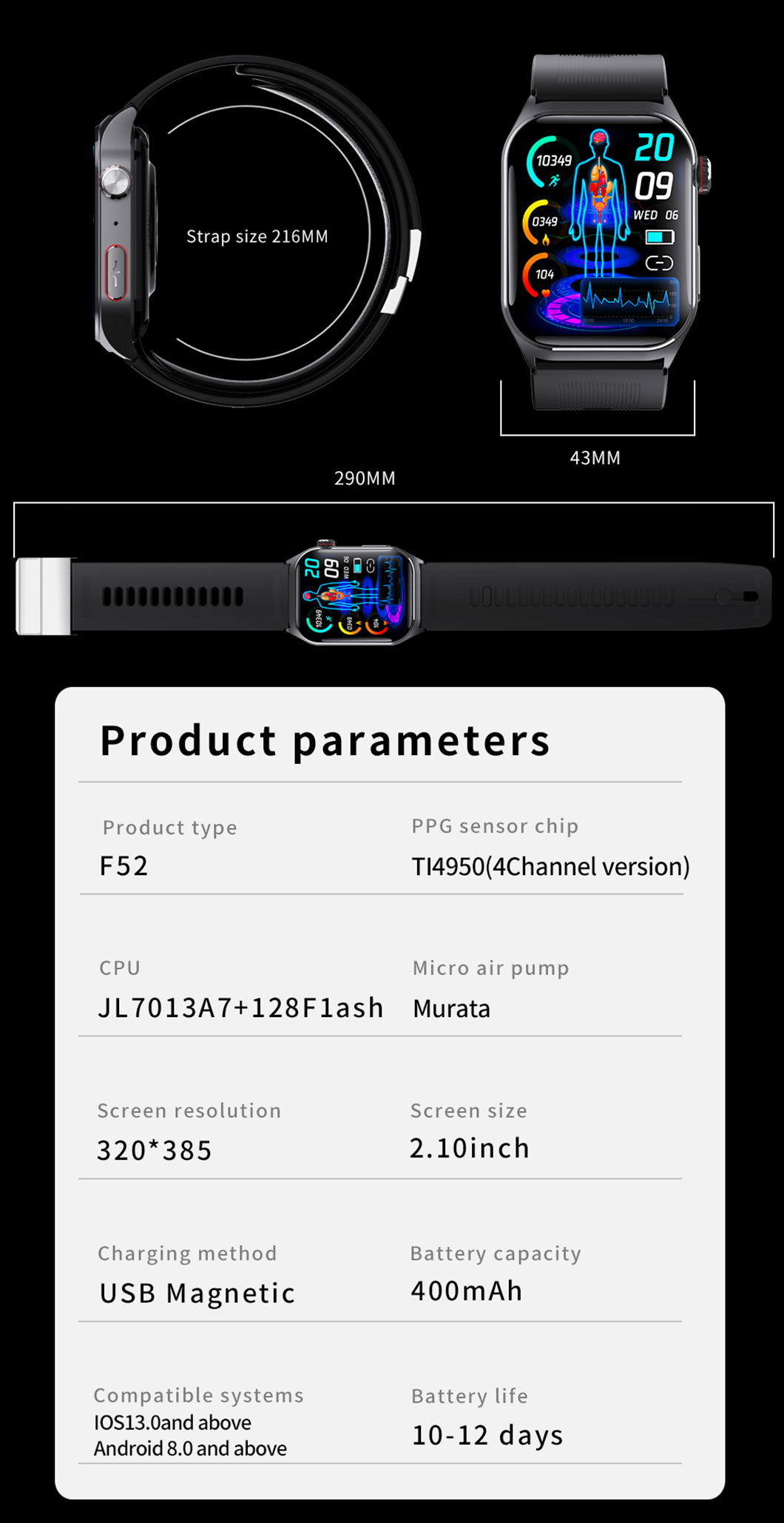

Product Parameters

Master Chip

JL7013A7+128M FLASH

Gsencor sensor

DA267

Heart rate sensor

TI4950 4PD

Virbation reminder

Motor vibration reminder

Waterpfoof Level

IP65 waterproof

Compatible System

iOS: 13.0 and above
Android: 8.0 and above

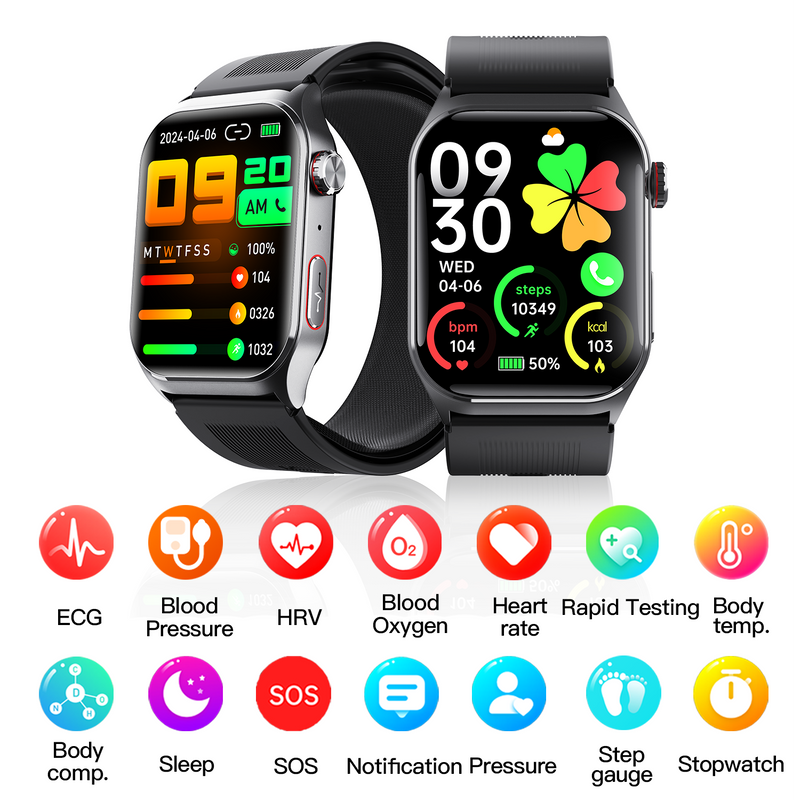

The main function

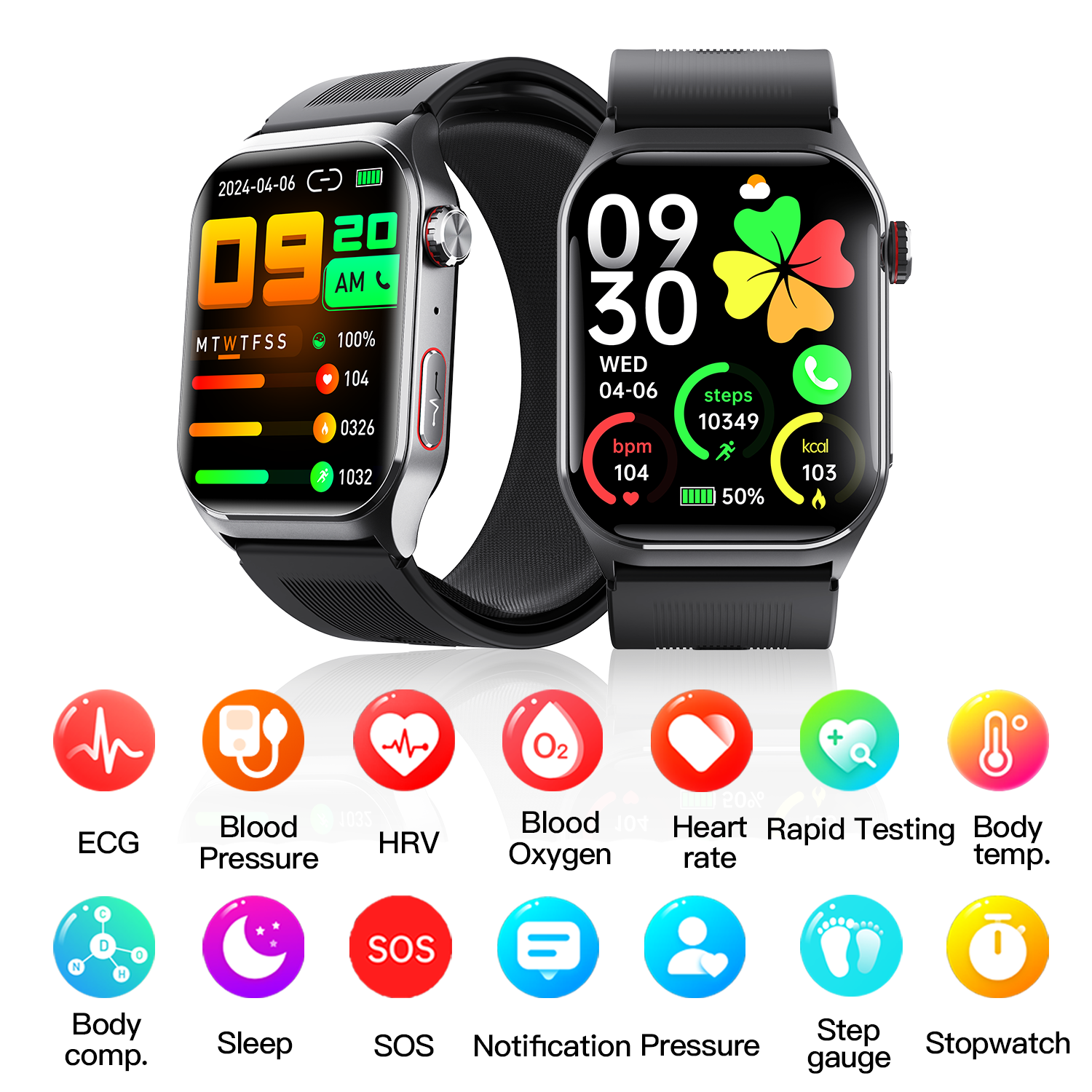

Important functions: medical air pump blood pressure, ECG, heart disease risk assessment, 24-hour dynamic heart rate detection, emotion management, depression risk assessment, 24-hour scientific sleep monitoring, redlight blood oxygen, skin moisture analysis, cortisol detection, neural activityanalysis, body composition, fall alarm, HRV report heart disease risk analysis,stress
Conventional functions: metering, step counting, distance, calories, calls, voice assistant, heart rate, blood pressure, temperature test, breathing training, stopwatch,timer, calculator, call settings, time and date settings, mini-games, female menstrualcycle tracking, music playback, music control, remote photography, weather display,wrist-raising screen, phone search (need to connect to APP), etc.Incoming call reminder (caller number/name), message notification reminder, alarmreminder, target reminder, sedentary reminder, heart rate alarm reminder, etc.

Sports mode

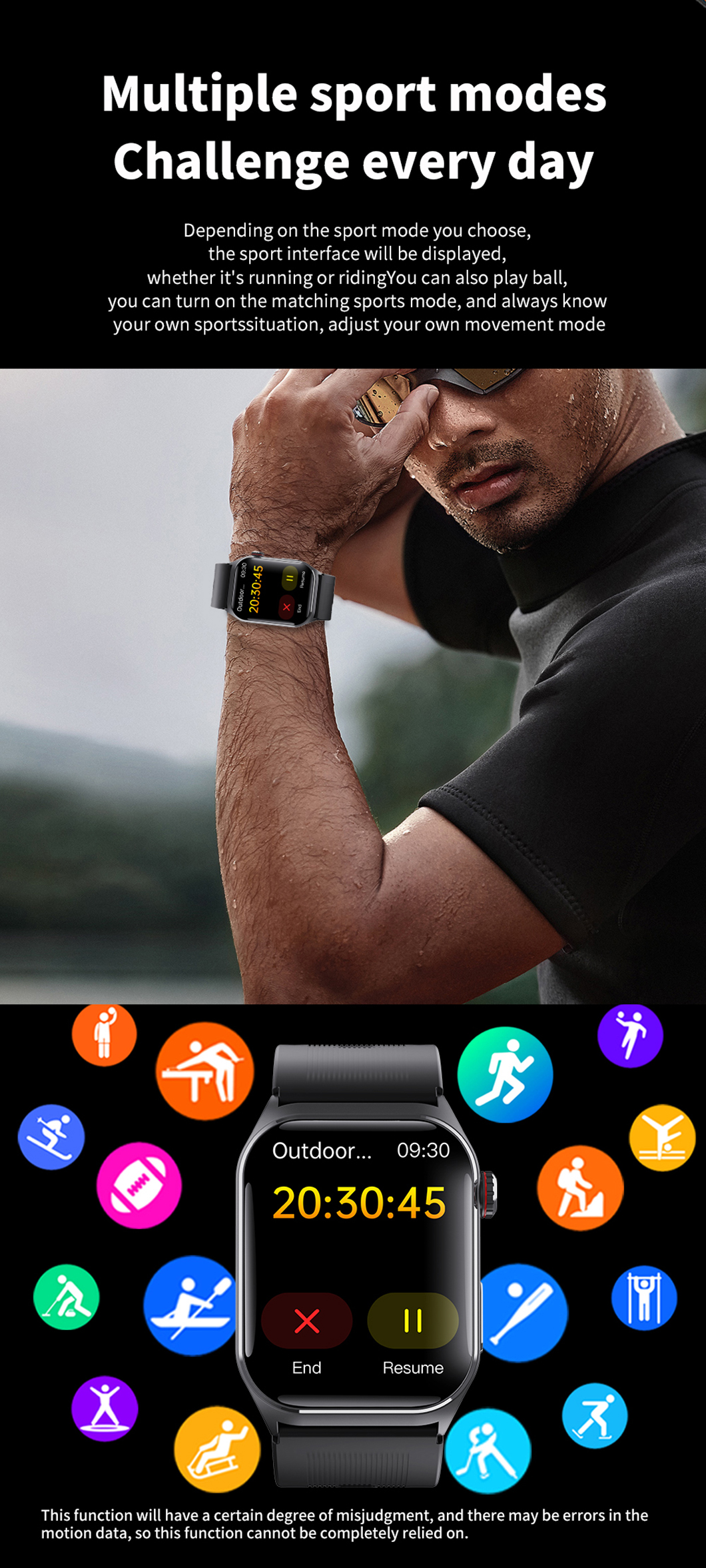

136+ sports modes:24 indoor sports, 16 dance sports, 12 combat sports, 29 ball sports, 13 ice and snowsports, 12 leisure sports, 5 chess and card sports, 5 other sports

Screen Size

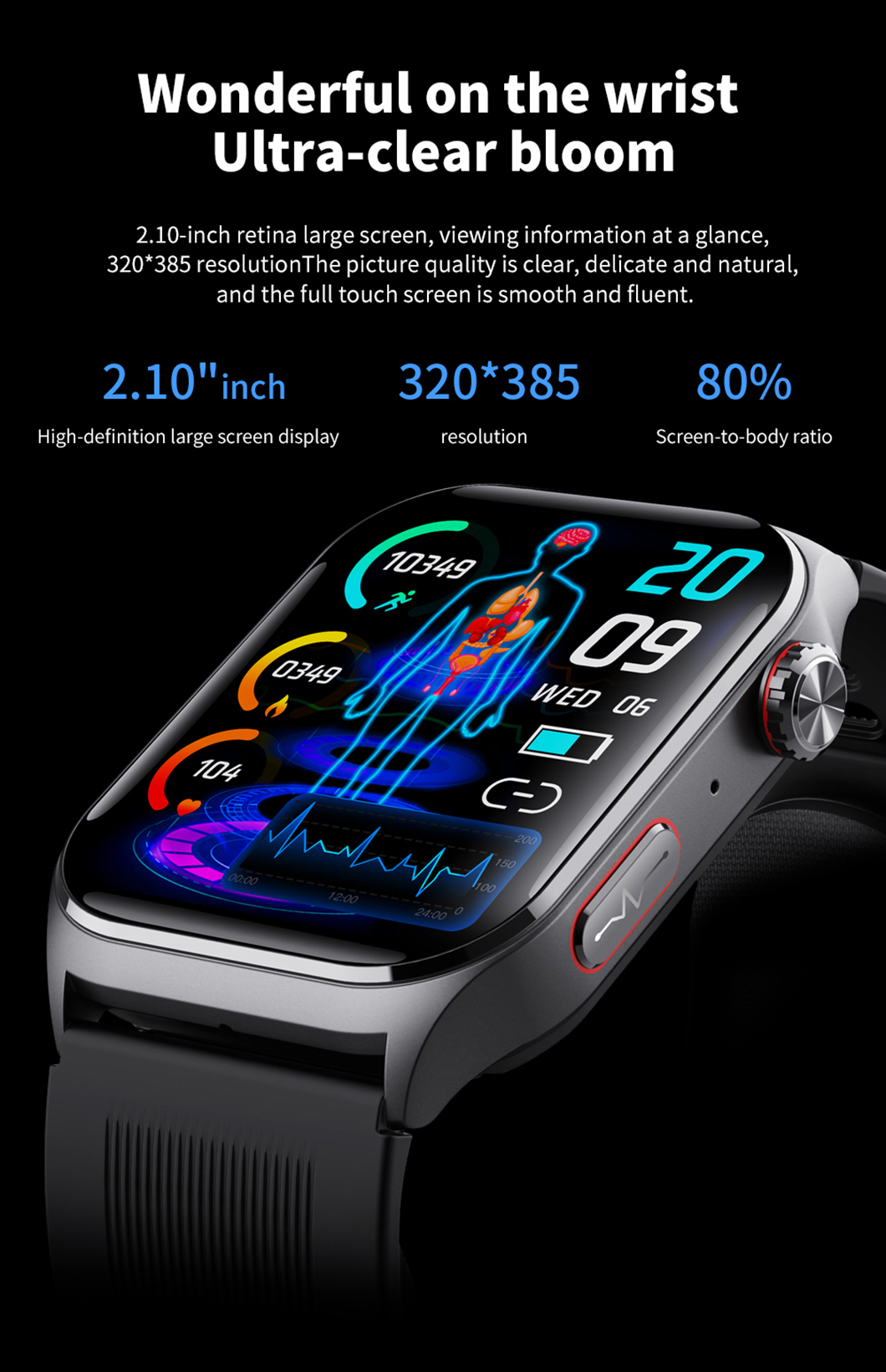

2.10" square screen Resolution: 320*385 (sRGB high color gamut)

Screen Type

IPS

Bluetooth

Bluetooth 5.3

Battery Type

Polymer lithium-ion battery

Battery Capcaity

3.7V/400 mAh

Charging Type

Magnetic charging charging

Charging Time

About 2.5h

Standby time

Regular use: 10-12 days;
Use all-day blood oxygen, scientific sleep function: 5-7 days

Manipulation Mode

Full screen touch control, mobile APP control

Supported languages on the watch

Dial language: English, Chinese, Japanese 24 countries: Simplified Chinese, Japanese,English, German, French, Spanish, Portuguese, Thai, Arabic, Italian, Korean, Russian,Traditional Chinese, Vietnamese, Hindi, Dutch, Swedish, Danish, Polish, Turkish,Hungarian, Romanian, Hebrew, Czech

Stap


Silicone strap

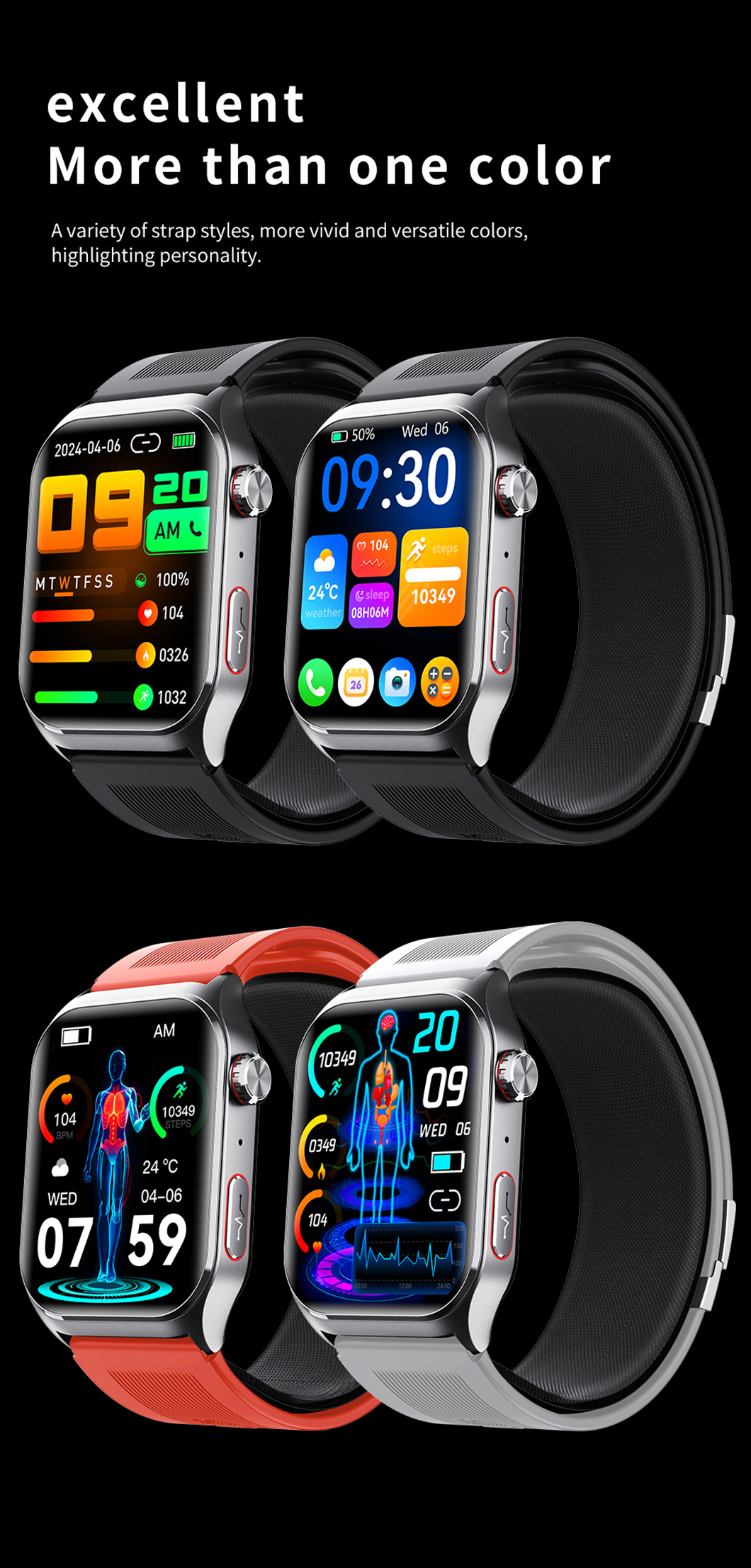

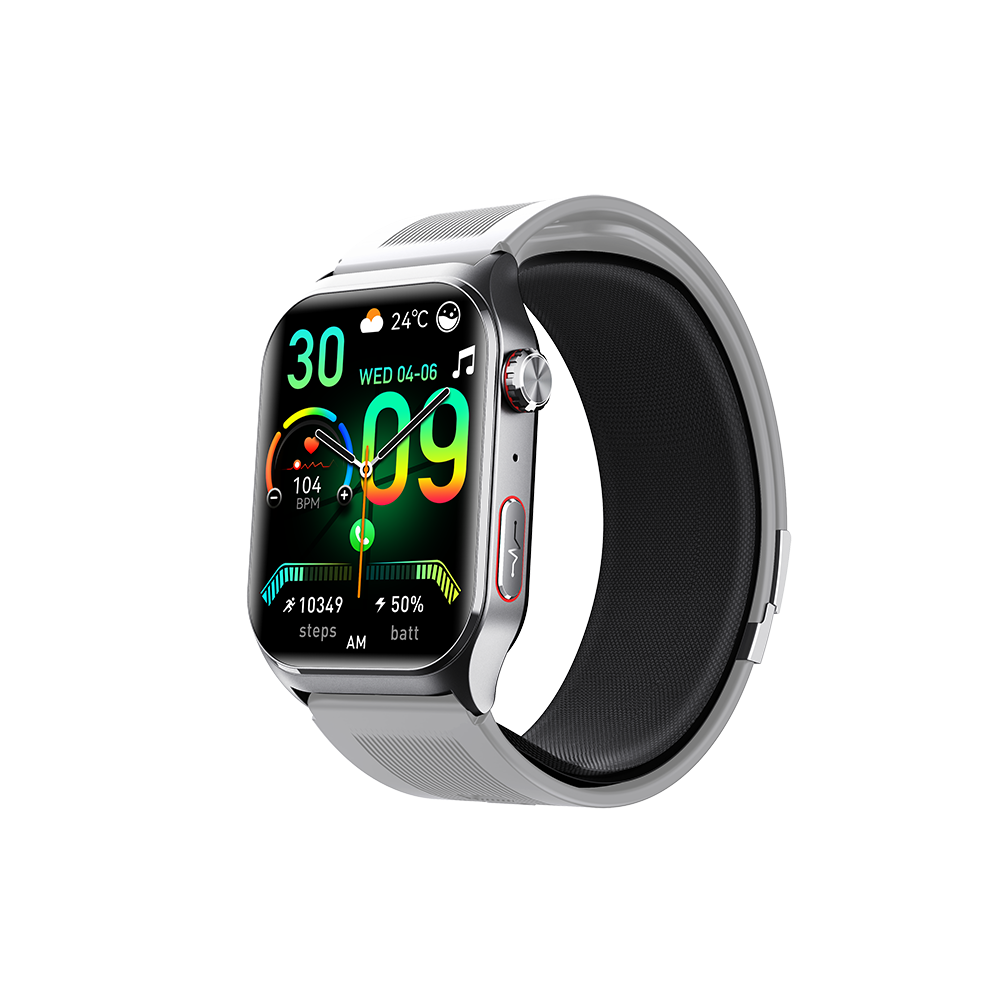

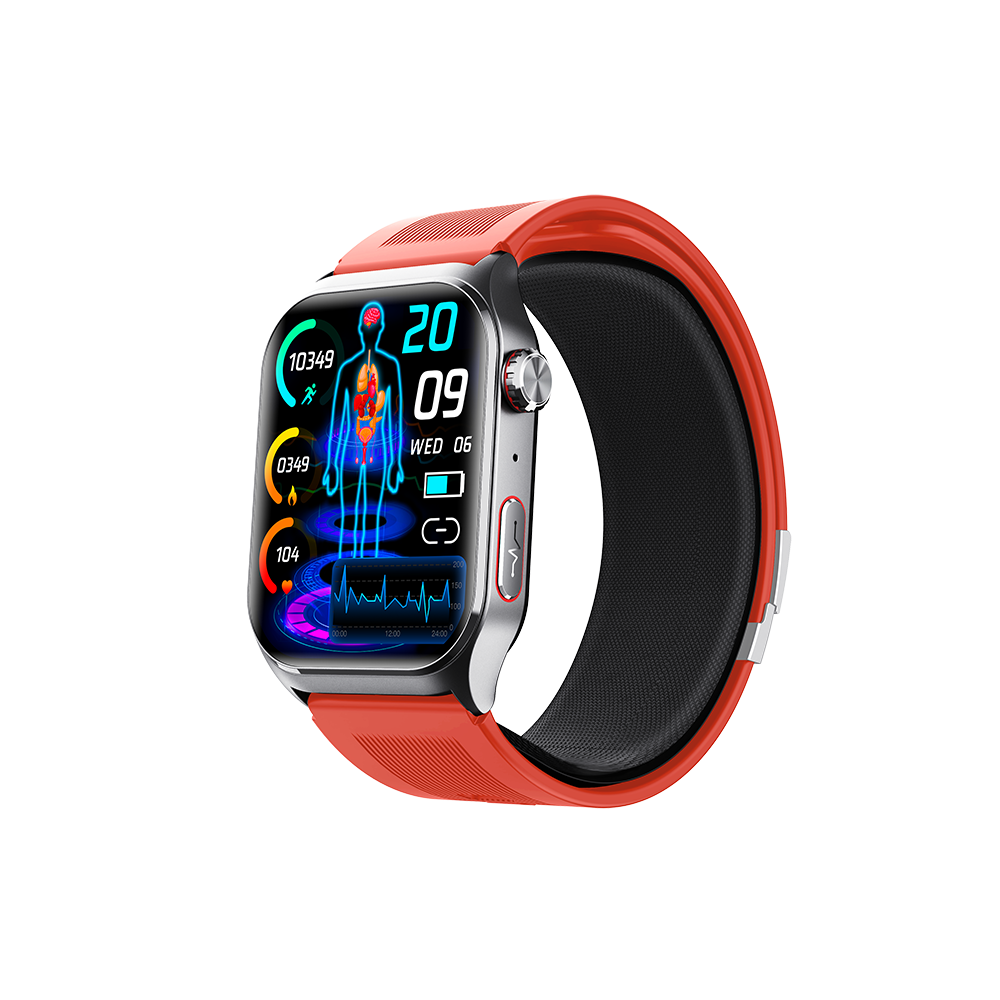

Color

Black, Orange, Grey

Packing

Watch, data charging cable, instruction manual, smart band, packaging box

Bracelet size

257 * 43 (length, width)

Box Szie

Gift box size: 150*90*19MM

Product Key Advantages

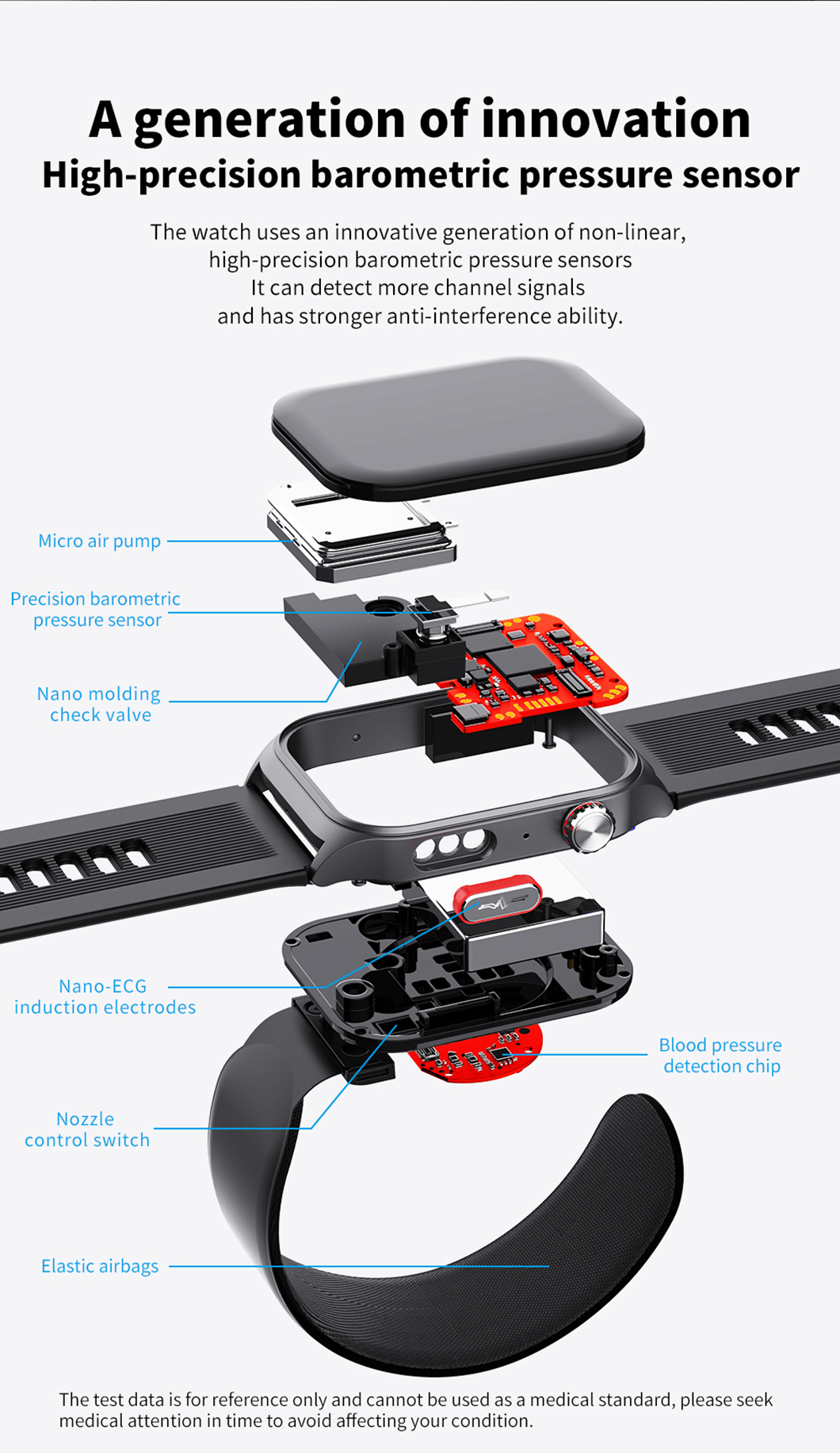

  • True Inflation Pressure Sensing: Embedded micro air pump coupled with an inflatable wrist strap offers physical pressure sensing (0-300mmHg) rather than optical estimates.

  • Advanced Cardiac Surveillance: ECG recordings and real-time HRV reporting provide continuous insights into heart health and cardiovascular performance.

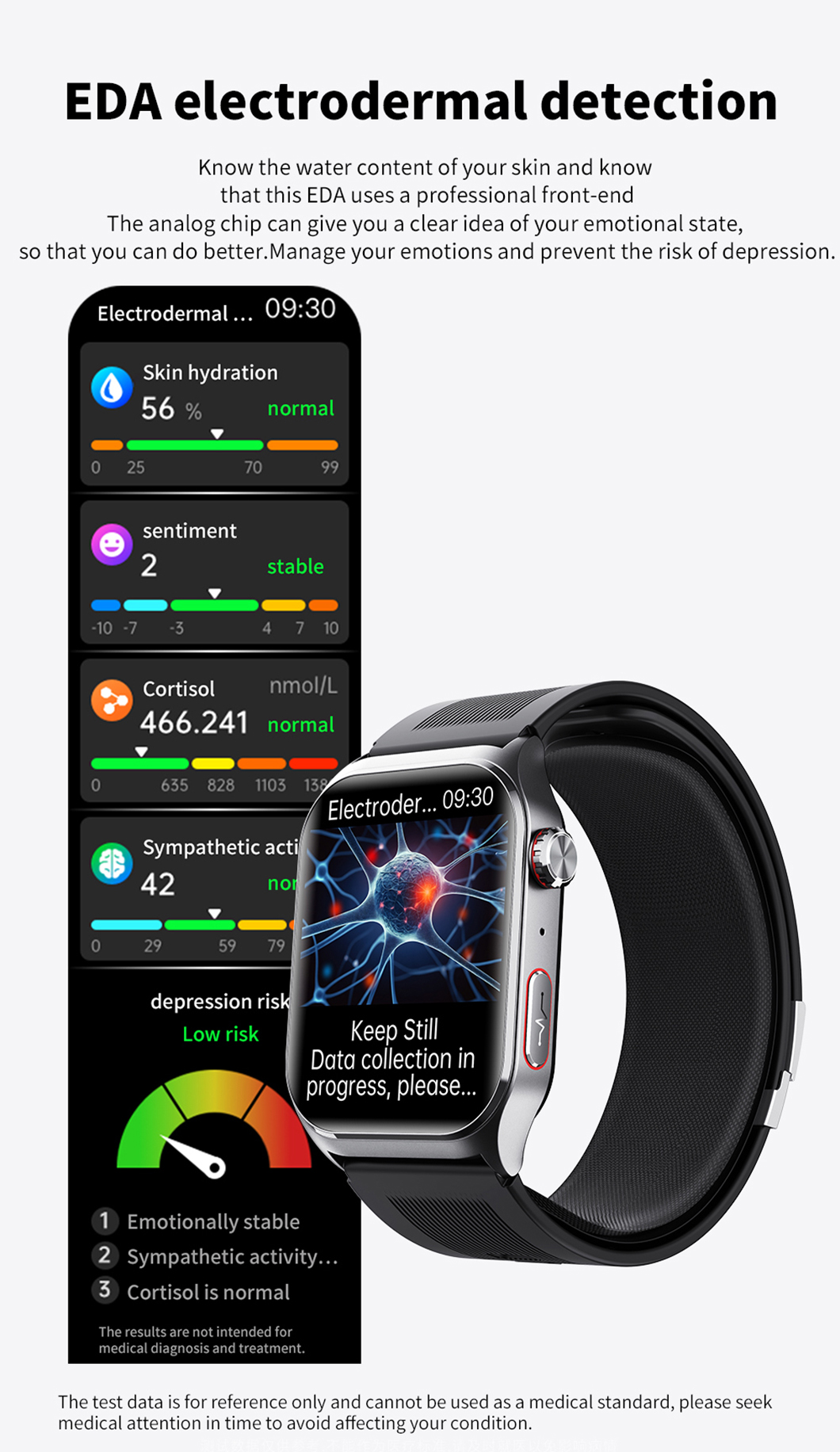

  • Body Metrics & Dermal Health: Evaluates body composition metrics alongside skin moisture levels, cortisol stress indicators, and neural system activity.

  • Emotional & Sleep Wellness: Analyzes mental fatigue, mood shifts, depression risk indicators, and multi-stage sleep quality around the clock.

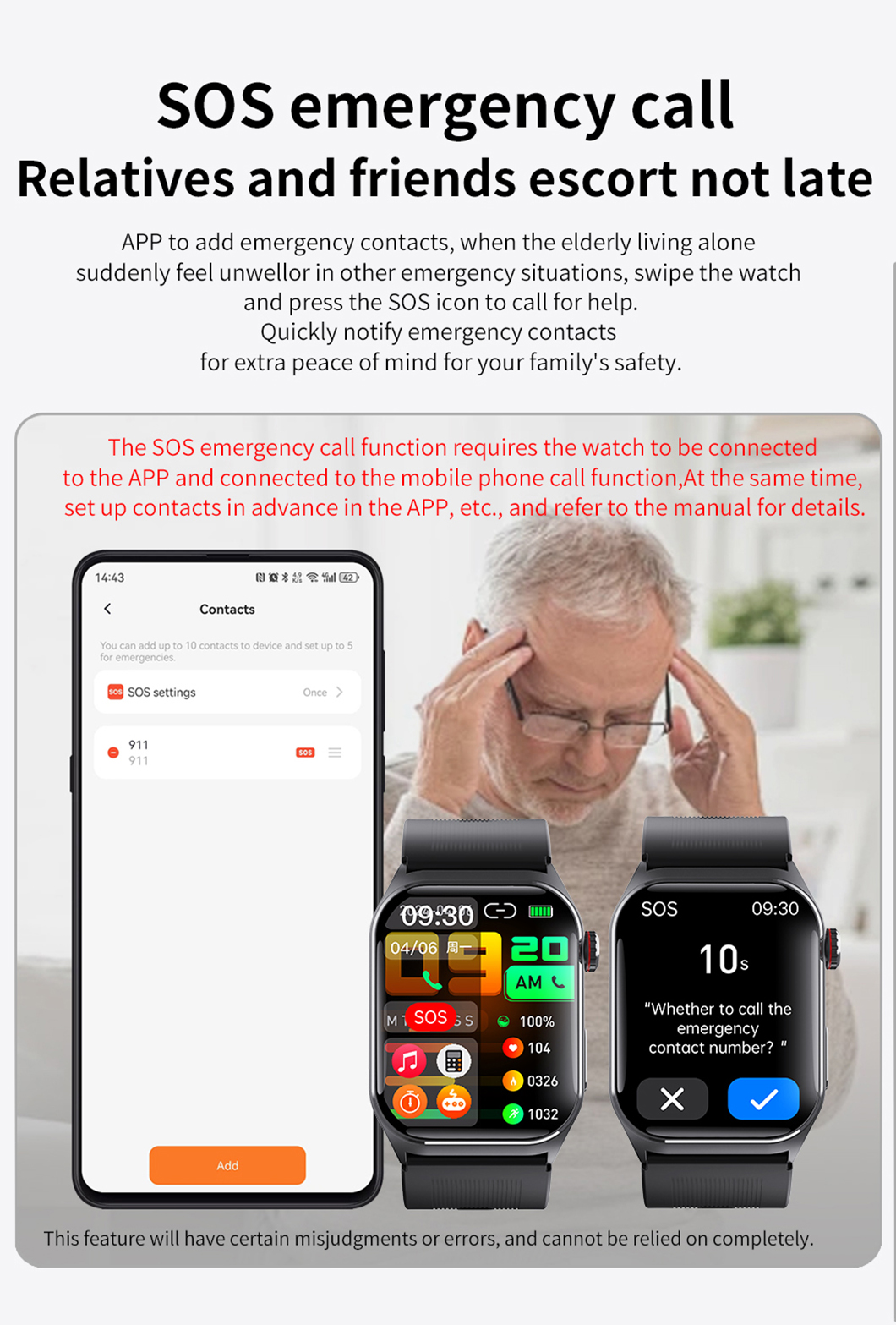

  • Intelligent Safety Protection: Integrated fall detection system automatically alerts designated contacts or triggers alarms during emergencies.

  • High-Definition IPS Screen: Vibrant 2.10-inch IPS square panel (320*385 resolution, sRGB high color space) delivers visuals in any lighting.

  • Reliable Power Reserve: High-density 400 mAh battery ensures 10-12 days of standard performance and 5-7 days under intensive sensor tracking.​


Main Features

  • Inflation-Based Pressure Tracking: Physical airbag inflation enables direct, mechanical pressure readings across a 0-300mmHg range.

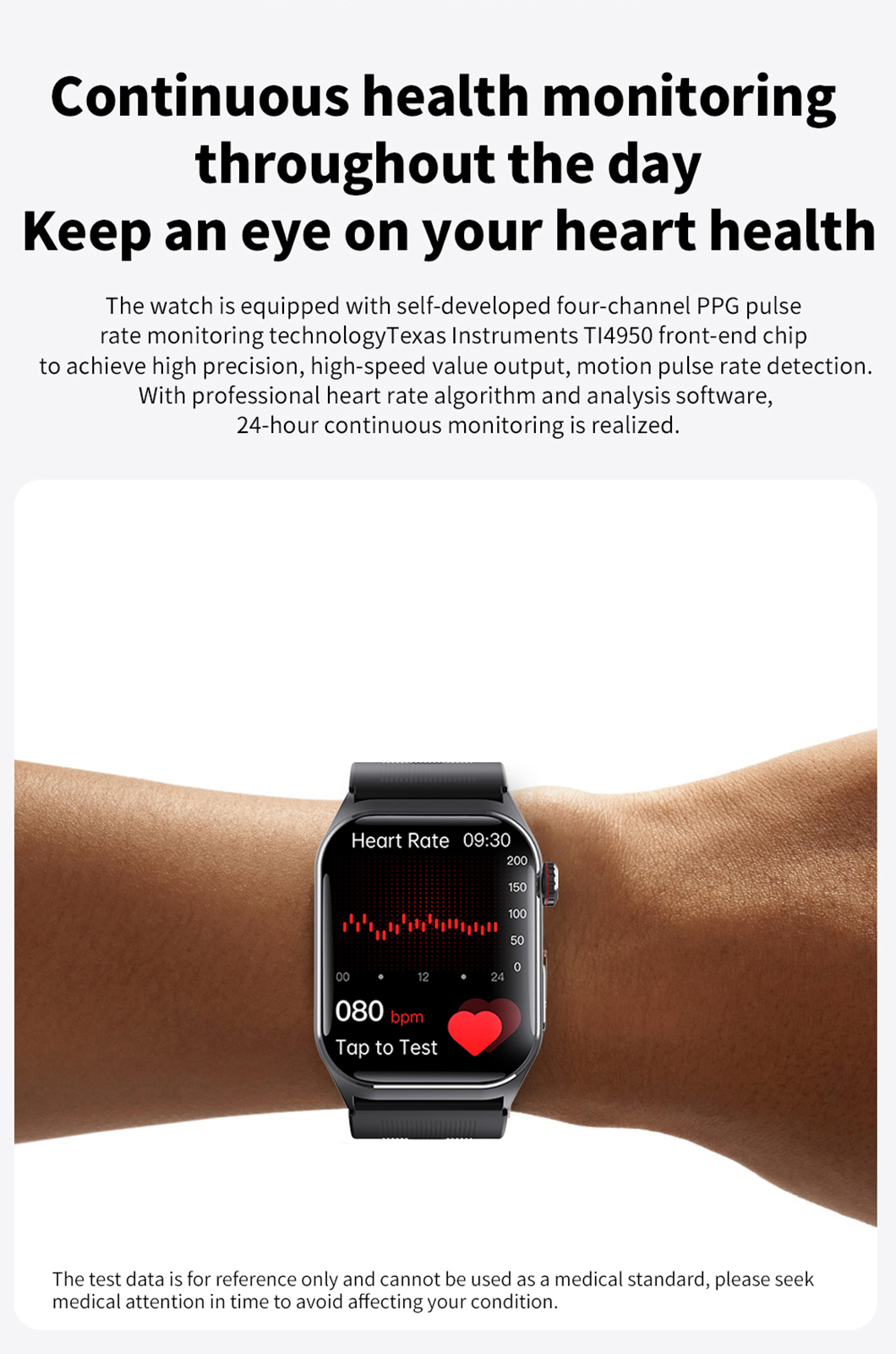

  • Comprehensive Health Suite: All-day heart rate sensing, red-light blood oxygen monitoring, body temperature measurement, and guided breathing exercises.

  • Extensive Sports Recognition: Over 136 sport modes supporting gym workouts, dance, combat training, team sports, winter recreation, and outdoor athletics.

  • Hands-Free Calling & Voice Control: Bluetooth 5.3 chip supports direct wrist calling, quick voice command input, and real-time smartphone alerts.

  • Everyday Utility Features: Music player control, remote camera release, weather forecasts, calculator, timer, female health logging, and casual mini-games.


Application Scenarios

  • Executive & Office Daily Health: Perfect for working professionals to keep tabs on blood pressure, stress levels, and sleep quality during busy work routines.

  • Fitness & Sports Enthusiasts: Designed for athletes who need comprehensive tracking across 136+ sports disciplines, step counts, and active calorie burn.

  • Senior Care & Safety Monitoring: Excellent choice for older individuals who benefit from automated fall alarms, heart rate warnings, and continuous wellness tracking.

  • On-the-Go Connectivity: Convenient for busy users needing quick voice calls, app notifications, and voice assistant access without pulling out their phone.


FAQ

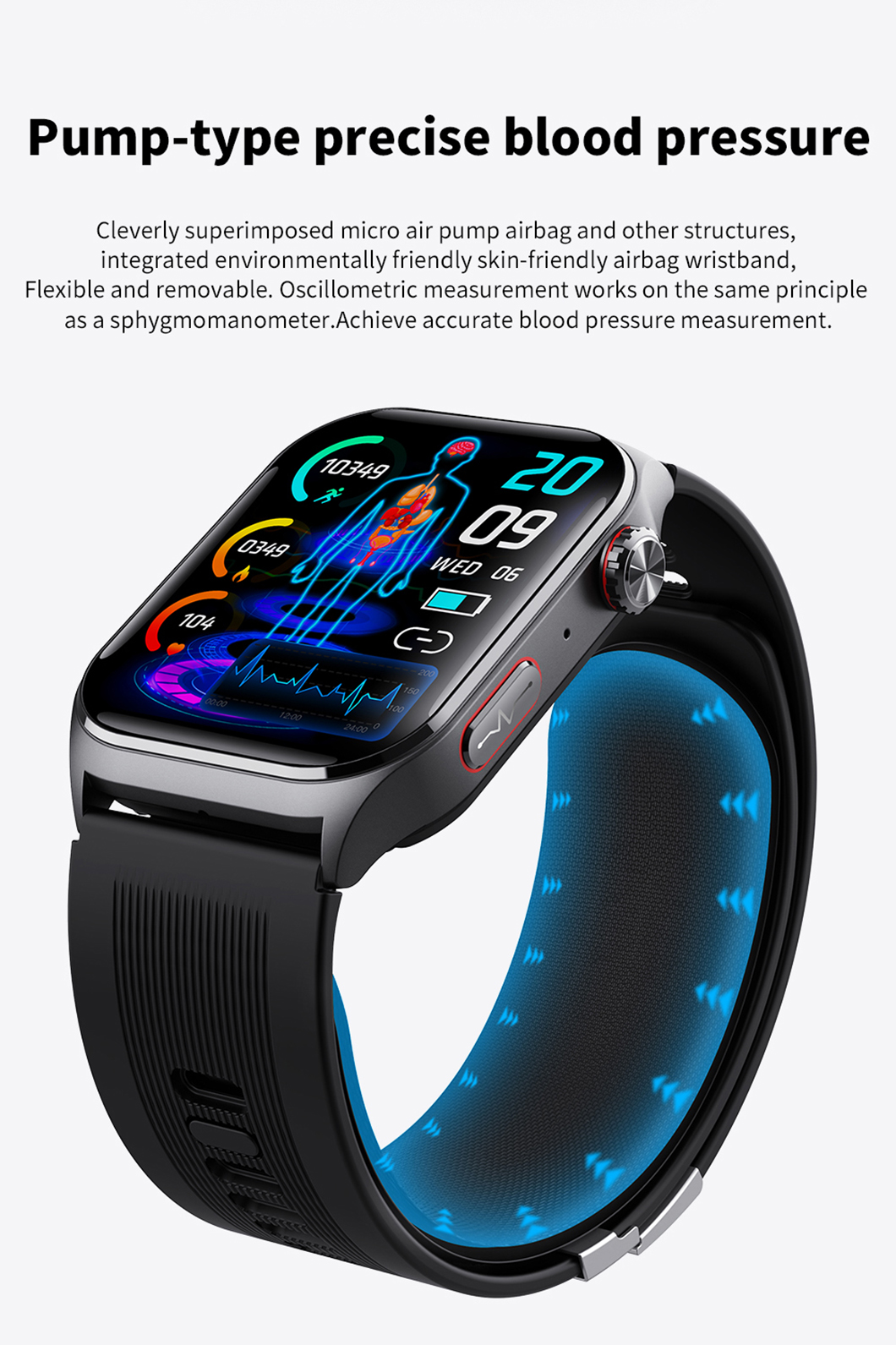

  • Q1: How does the air pump blood pressure measurement work?

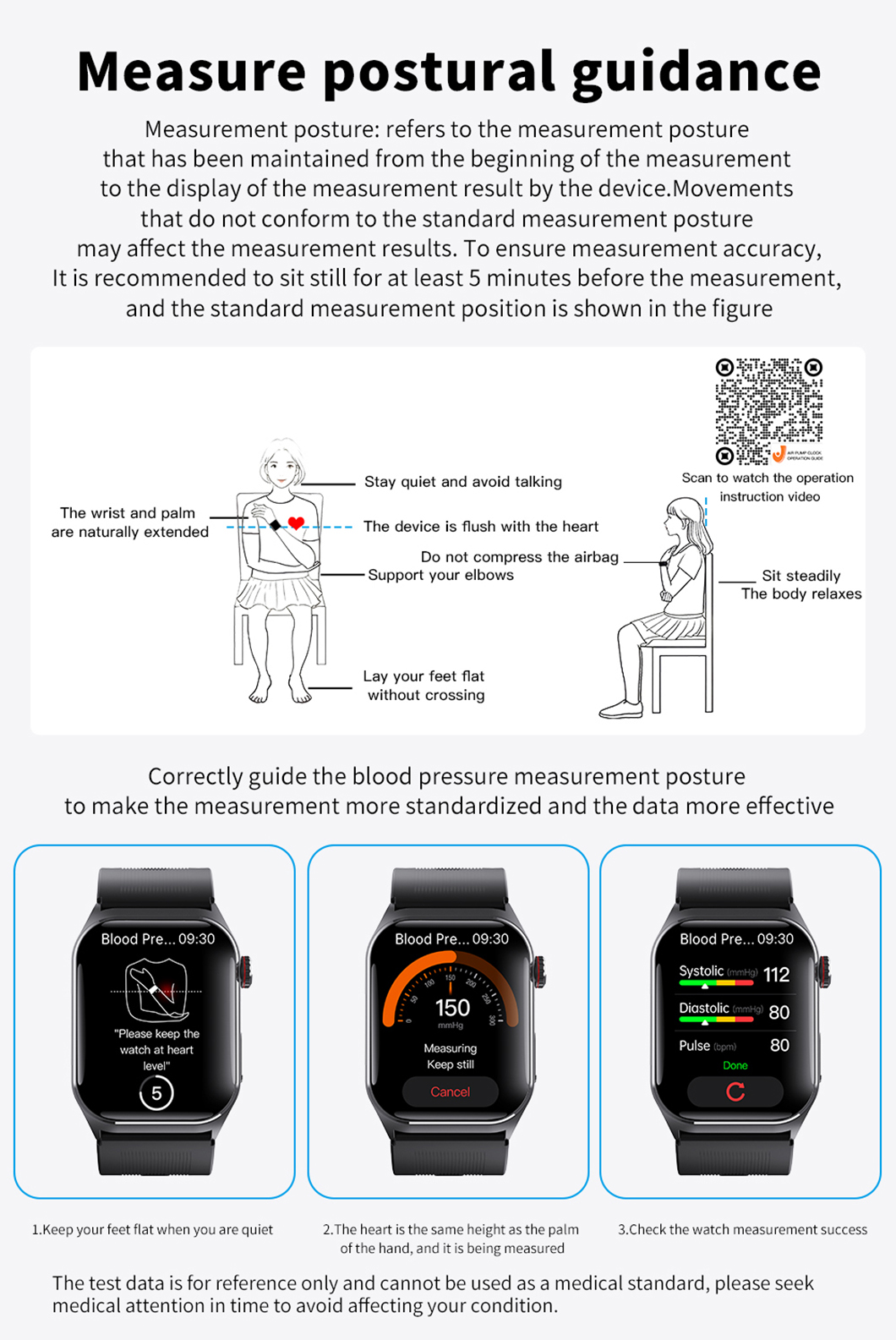

    A: The watch uses a micro air pump built into the body and a flexible airbag strap that inflates to take mechanical pressure readings, similar to a traditional cuff monitor.

  • Q2: How long does the battery last on a single charge?

    A: The 400 mAh battery lasts approximately 10 to 12 days under regular usage, and 5 to 7 days when continuous blood oxygen and scientific sleep features are active.

  • Q3: Is the F52 smartwatch waterproof?

    A: The smartwatch carries an IP65 rating. The airbag strap must be installed correctly to maintain water resistance during everyday exposure like light rain or handwashing.

  • Q4: Which smartphones are compatible with the watch?

    A: The watch connects via Bluetooth 5.3 using the Joeme fit application, supporting iOS 13.0 or higher and Android 8.0 or higher.

  • Q5: Does the watch support emergency fall alerts?

    A: Yes, the F52 features built-in fall detection sensors that automatically trigger an alarm when a sudden fall is detected.
